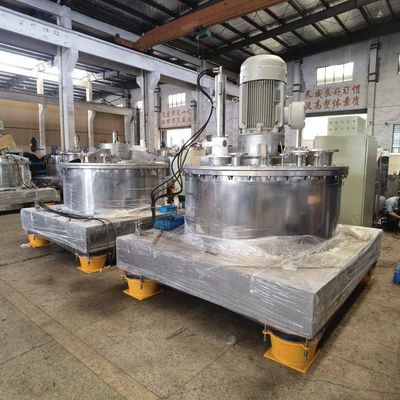

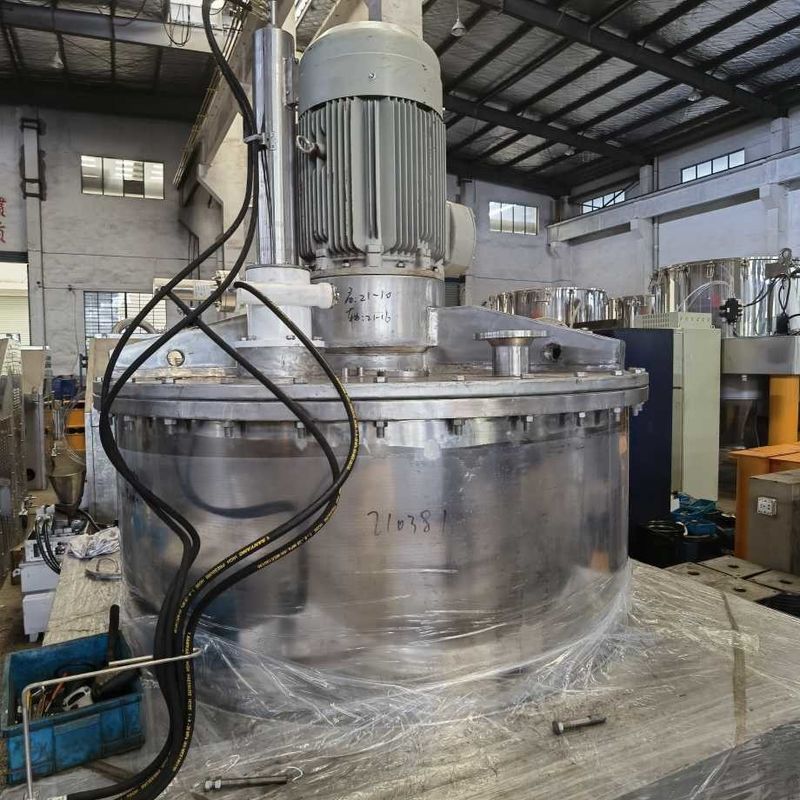

PAUT Series Automatic Nitrocellulose Separating Stainless Steel 904L Scraper Bottom Discharge Centrifuges
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 01418P10003R2M |
| Model Number: | PAUT1320 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD30000-60000/set |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 60 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Centrifugal Type: | Basket Centrifuge | Discharge: | Scraper Bottom Discharge |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Operate: | Automatic Batch Operate |
| Machine Control: | PLC Control | Cover Opening: | Hydraulic Control |
| Motor Start Control: | Frequency Converter | MOC: | Stainless Steel |
Product Description
PAUT1320 Series Automatic Nitrocellulose Separating Stainless Steel 904L Scraper Bottom Discharge Centrifuges
Product features
◇Large length-diameter ratio, big loading capacity.
◇Rigidly joint between base and case, offering simple and compact construction.
◇Independent bearing seat, large bearing support span, low basket gravity center, larger carrying capacity.
Scope of Application
PAUT series of centrifuges are applicable to washing and solid-liquid separation of suspension media containing solid particles, as well as solid-liquid separation of media containing a crystalline solid phase, which can be widely used. This product is commonly used for the treatment of gypsum, ammonium sulphate, mirabilite, ferric sulphate, copper sulphate, nickel sulphate, potassium chloride, acetic acid, borax, soda, rubber additive, dye, starch, sugar, vitamin, antibiotic, herbicide, insect repellent, copper, zinc, aluminum, acid discharge gypsum, metal refining, sludge after water purification, sludge in sewage, and other kinds of chemicals and pharmaceuticals.
Technical Parameters
| Items | Models |
| PAUT1320 | |
| Basket Diameter(mm) | 1320 |
| Effective Basket Height(mm) | 800 |
| Basket Volume(L) | 490 |
| Max. Capacity(kg) | 620 |
| Motor Power(kw) | 30 |
| Max. Speed(r/min) | 900 |
| Max. Separation Factor | 600 |
| Dimension(mm) | 2100*2000*2600 |
| Weight(kg) | 5500 |
SERVICE WARRANTY
Huada has Long tradition customer service, we always try our best.
An effective service management organization ensures professional and flexible management of any affairs.
Huada has a long tradition of customer service and we always do our best to provide assistance.
An effective service management organization can ensure professional and flexible handling of product application business.
Presale consulting - sales staff and sales engineers provide relevant technical advice specific to demands proposed by customers. Technical experts in application can provide technical support where necessary.
Type selection - centrifuge type selection is crucial and decides separation process feasibility, safety, product quality, yield, operation cost, etc. also, it a crucial impact on Infrastructure projects, equipment investment and environmental protection, etc.
For particular separation process requirements, we must totally understand physical and chemical properties of the material. Under the premise of meeting anti-corrosion and anti-explosion requirements (i.e. safety requirements). we can realize filtration and separation requirements and at the same time fully consider the automation, running cost and other factors . Our experts in application technology can put forward the corresponding proposal for specific operating conditions and effectively communicate with your process/ equipment, personnel to ensure reasonable, advanced and economical type selection
Laboratory test - Making laboratory analysis on separation characteristics of the material to provide the basis for type.
Small batch test - After preliminary type selection, simulation separation test can be carried out for small batch of verification machines to obtain relevant separation data and to provide the basis for separation process section design. This can be made in test workshop of Huada or can be made at place designated by the customer with vehicle-mounted test unit provided.
Repair - Providing door-to-door on-site repair and return to factory for repair.
Safety confirmation - During the term of the service life of the centrifuge, providing centrifuge safety testing and validation in the annual overhaul.
We just obtain the data and information connected with the separation process within the scope of your permit, and we ensure your data safety.
