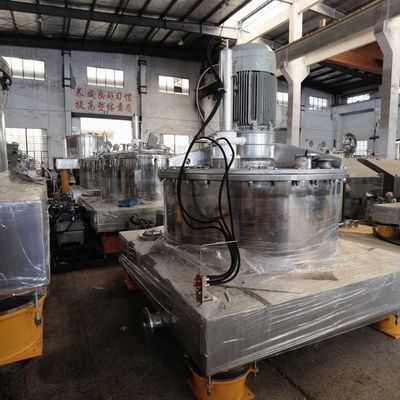

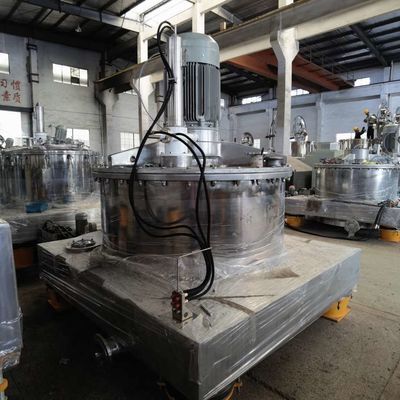

Anti Corrosion 850rpm Bottom Discharge Centrifuge 1250kg For Ascorbic Acid Separation
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 01418P10003R2M |
| Model Number: | PAUT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 80 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Centrifugal Type: | Basket Centrifuge | Effective Basket Height(mm): | 1000 |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Operate: | Automatic Batch Operate |
| Machine Control: | PLC Control | Max. Capacity(kg): | 1250 |
| Motor Start Control: | Frequency Converter | Max. Speed(r/min): | 850 |
| High Light: | 850rpm Bottom Discharge Centrifuge,850rpm basket type centrifuge,Bottom Discharge Centrifuge 1250kg |
||
Product Description
PAUT Anti-Corrosion Automatic Bottom Discharge Scraper Safety Requirements Centrifuge For Ascorbic Acid Separation
Optional configurations
◇Feed type: Side feed through single or multiple nozzles
◇Scraper discharge: hydraulic
◇Motor drive: Motor driving General motor, explosion-proof motor, frequency conversion motor
◇Safety protection: Nitrogen protection (anti-explosion) system, vibration protection, mechanical and electrical interlocking protection, overload protection, material level detection
◇Surface treatment: Mirror finishing, matt finishing, and dulling
Technical Parameters
| Items | Models |
| PAUT1600 | |
| Basket Diameter(mm) | 1600 |
| Effective Basket Height(mm) | 1000 |
| Basket Volume(L) | 1000 |
| Max. Capacity(kg) | 1250 |
| Motor Power(kw) | 45 |
| Max. Speed(r/min) | 850 |
| Max. Separation Factor | 647 |
| Dimension(mm) | 2700*2350*2900 |
| Weight(kg) | 10000 |
PROCEDURE CONTROL
Huada has a professional quality management team, which implements each link related to users and products from contract review, technical design, material procurement, manufacturing process to after-sales service according to standard operating procedure, to effectively control the full process from design, purchasing, manufacturing to service.
Quality certification and mechanical safety certification
We established quality management system; in 1996, our products passed ISO quality management system certification and from 1998 our products passed mechanical safety certification and reexamination is made each year. Effective quality management system can ensure the product quality,
Contract review
For individual requirements of customers, we make security risk evaluation specific to contract and technical agreement, to ensure that safety requirements. We confirm individual configuration and changes and propose quality plan and opinions.
Process control
Quality plan: For each order, at the time of design output, we put forward the quality plan of the production batch according to the customers’ individual requirements and internal quality control requirements and make clear information like material, configuration, individual changes, inspection requirements and special agreement. The quality plan is the internal control document for purchase, manufacture, inspection and confirmation for this batch.
ERP process: Through process and permissions settings, we standardize the product realization process including design output, change, procurement, materials distribution, machining process, inspection and records, warehouse-in and warehouse-out.
For every process, whether purchasing, internal parts processing or assembly process, we have established strict quality control requirements. For welding, surface coating, main and key parts processing and general assembly, we have formulated detailed operation and inspection regulations to ensure effective control of each process.
