PAUT Continuous Anti-Corrosion Explosion-Proof Vertical Scroll Scraper Drilling Fluids Cuttings Dryer
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 01418P10003R2M |
| Model Number: | PAUT1600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 80 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Centrifugal Type: | Basket Centrifuge | Effective Basket Height(mm): | 1000 |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Operate: | Automatic Batch Operate |
| Machine Control: | PLC Control | Max. Capacity(kg): | 1250 |
| Motor Start Control: | Frequency Converter | Max. Speed(r/min): | 850 |
Product Description

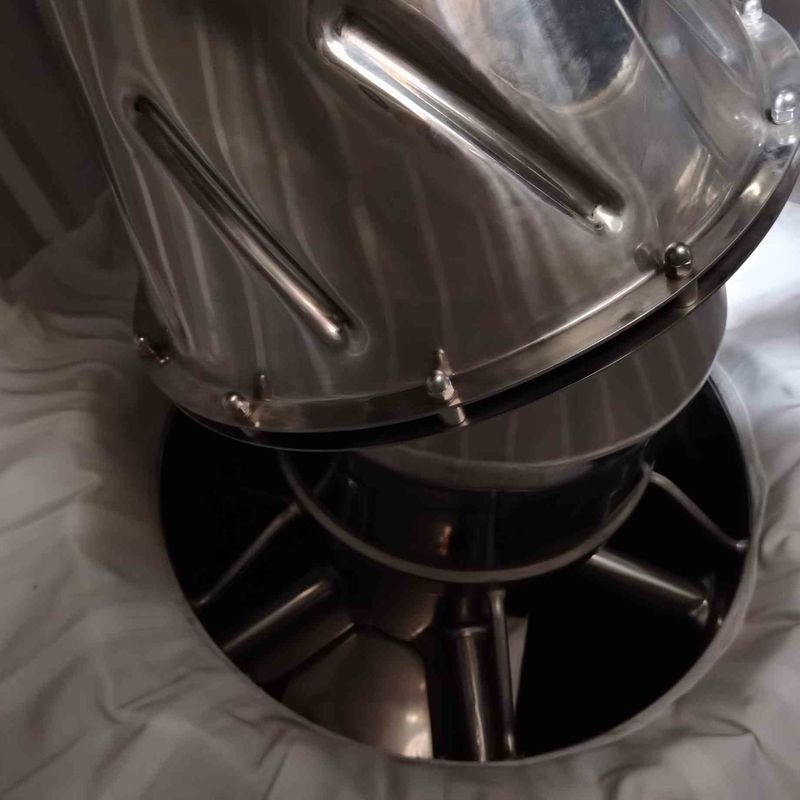

PAUT1600 Continuous Anti-Corrosion Explosion-Proof Vertical Scroll Scraper Drilling Fluids Cuttings Dryer
Optional configurations
◇Outlet hopper: Diameter and height can be configured according to the requirements of customers
◇Residual solid cake treatment: Roller-aided scraper, Air counter-blowing, Air blow device on scraper
◇Program control: Programmable control
◇Nitrogen protection system: Automatic nitrogen supply device, oxygen detection device, hydraulic sealing device and gas-liquid separator
◇Coating treatment: HALAR lined and PE lined
Technical Parameters
| Items | Models |
| PAUT1600 | |
| Basket Diameter(mm) | 1600 |
| Effective Basket Height(mm) | 1000 |
| Basket Volume(L) | 1000 |
| Max. Capacity(kg) | 1250 |
| Motor Power(kw) | 45 |
| Max. Speed(r/min) | 850 |
| Max. Separation Factor | 647 |
| Dimension(mm) | 2700*2350*2900 |
| Weight(kg) | 10000 |
Innovative
Huada holds a dominant position in the domestic centrifuge market, which to a great extent is attributed to its leading role (leading both users and peers).
Although it has a number of new products and new technologies, it is not content with having centrifuges meet the separation requirements in the initial use.
It is more concerned about the long-term performance of the centrifuge and would like to solve problems such as high productivity, high washing rate, low crystal breakage rate, low residue rate and low energy consumption for customers and provide customers with safe, intelligent and environmentally friendly separation equipment and solutions.
Qualification and Honorary Certificates
- China Patent Excellence Award
- Small Giant Enterprise in Jiangsu Province
- Jiangsu New High-tech Enterprise
- National Intellectual Property Advanced Enterprise
- Unit with Professional, Refined, Specialized and Novel products in Jiangsu Province
- Centrifuge National and Industrial Standards Drafting Unit
- Key High-tech Enterprise of National Torch Plan
- Vice Chairman Unit of Separation Machinery Branch of China General Machinery Industry Association
- Number Unit of National Technical Committee for Standardization of Separation Machinery
Anti-corrosion
The materials to be separated are normally corrosive. So for safety, the parts in contact with these corrosive materials must be anti-corrosive.
Material of constructions: 304, 321, 316L, 904L, TA, 2205, 2507etc.
When there is determined application experience or corrosion data, carry out coupon test and laboratory verification to ensure selected material meet anti-corrosion requirements.
Anti-corrosion requirements of sealing elements can not be neglected; material of sealing elements shall ensure prevention against corrosion from acids, alkali and solvents.
The customer shall forward the physical and chemical properties of the material and washing liquid (chemical properties and separation temperature etc.) to the manufacturer so that it can make recommendations for centrifuge materials based on characteristics of the separation medium, and that the suitable seal ring, seal washer and filter cloth can be provided, thus ensuring anti-corrosion requirements on the centrifuge.

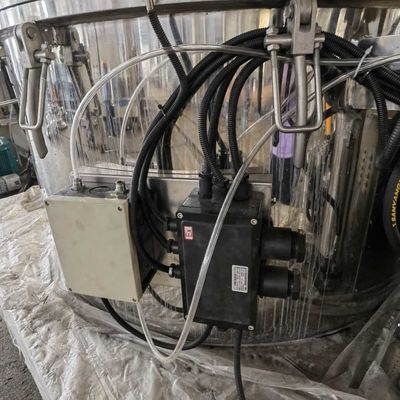

Explosion-proof
If the centrifuge works in the environment, where there are some explosive substances, the centrifuge should be explosion-proof. If the centrifuge becomes really explosion-proof, it should take a variety of measures in mechanical, electrical control and the accessories selection.
Electric control: explosion-proof isolator, non-touch dynamic braking system, static grounding and explosion-proof automatic control.
Mechanical system: explosion-proof motor, explosion-proof light, anti-collision and anti-static driving belt.
Explosion-proof accessories: nitrogen protection system, on-site explosion-proof control button.
Therefore, for those environments required explosion-proof, users can specify the filtration medium, requirement and degree of explosion-proof when they take orders, in order to buy the right equipment to meet the requirements of explosion-proof.
