Bottom Discharge Scraper 1150rpm Centrifugal Separator Solid Liquid For Table Salt
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015, 01418P10003R2M |
| Model Number: | PLD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD30000-110000/set |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 70 work days |
| Payment Terms: | T/T, L/C, , Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Features: | Automatic Working, Saving Labor | Place Of Origin: | China |
|---|---|---|---|
| Voltage: | 220v/300v/380v/optional | Control System: | PLC Control |
| Condition: | New | Application: | Solid Liquid Separation, Dewatering |
| Type: | Separating Plant | Core Components: | PLC, Bearing, Motor |
| Key Selling Points: | High Productivity | Warranty: | 1 Year |
| High Light: | centrifugal separator solid liquid table salt,1150rpm industrial centrifugal separator,1150rpm centrifugal separator solid liquid |
||
Product Description
Solid Liquid Separation Bottom Discharge Scraper Centrifuges With Bag Pulling Used For Table Salt
Product Introduction

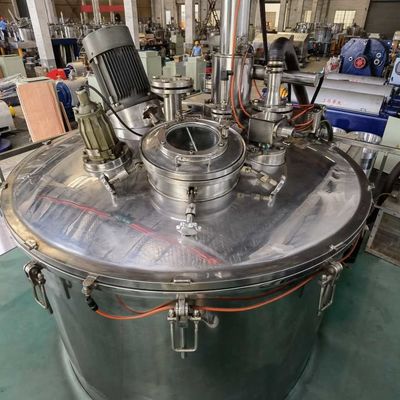

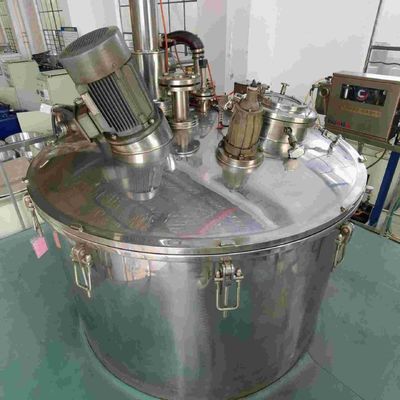

Solid-Liquid Semi-Automatic separator Machine Centrifuge is top discharging, hermetic closure type equipment. The material is fed into the drum through the feeding pipe on the hermetic closure casing; under the action of the centrifuge force field, the liquid-phase passes through the filter medium and the discharged out of the machine, while the solid-phase material is retained inside the drum and, after the machine is stopped, the material is discharged from the top. The centrifuge has such features as smooth running, easy & convenient operation as well as conducting feeding, washing and dehydrating under the state of hermetic closure, etc
Technical Parameters
| Items | Model | |||||||
| PLD800 | PLD1000 | PLD1250 | PLD1400 | PLD1600 | PLD1670 | PLD1800 | ||
| Basket Diameter(mm) | 800 | 1000 | 1250 | 1400 | 1600 | 1670 | 1800 | |
| Effective Basket Height(mm) | 460 | 570 | 700 | 800 | 900 | 920 | 1100 | |
| Basket Volume(L) | 100 | 190 | 400 | 600 | 800/750 | 900 | 1250 | |
| Max. Capacity(kg) | 130 | 230 | 500 | 700 | 1000 | 1125 | 1500 | |
| Motor Power(kw) | 7.5/11 | 15 | 22 | 30/37 | 37/55 | 45 | 55 | |
| Max. Speed(r/min) | 1200/1500 | 1100/1200 | 1000/1200 | 950/1150 | 850/1050 | 850 | 800 | |
| Max. Separation Factor | 645/1007 | 678/805 | 700/1007 | 700/1036 | 647/987 | 675 | 645 | |
| Weight(kg) | Platform construction | 2000 | 3500 | 5000 | 9000 | 12000 | 12500 | 17000 |
| Square box structure | 4000 | 6000 | ||||||
TECHNOLOGICAL INNOVATION
Focus – Huada focuses on research and development, manufacture and application of filtration and separation technology.
Over 20 years , Huada Ltd. has been considering technological innovations as one of the corporate strategies. We have recruited a group of talented engineers and technicians professional in filtration and separation technology to research and develop the centrifuges with better separation efficiency, lower energy consumption, better convenient operation, higher reliability and closer focus on the separating materials. In addition , working environment, automation and individualization are always taken into account throughout the course of design and manufacturing we still keep continual summarizing our experience, and continually change and improve our design in order to optimize our products.
Professional - Establishing up professional teams on technology research and development , technology application , process design , inspection and tesing
PROCEDURE CONTROL
Huada has a professional quality management team, which implements each link related to users and products from contract review, technical design, material procurement, manufacturing process to after-sales service according to standard operating procedure, to effectively control the full process from design, purchasing, manufacturing to service.
Quality certification and mechanical safety certification
We established quality management system; in 1996, our products passed ISO quality management system certification and from 1998 our products passed mechanical safety certification and reexamination is made each year. Effective quality management system can ensure the product quality.
Contract review
For individual requirements of customers, we make security risk evaluation specific to contract and technical agreement, to ensure that safety requirements. We confirm individual configuration and changes and propose quality plan and opinions.
Process control
Quality plan: For each order, at the time of design output, we put forward the quality plan of the production batch according to the customers’ individual requirements and internal quality control requirements and make clear information like material, configuration, individual changes, inspection requirements and special agreement. The quality plan is the internal control document for purchase, manufacture, inspection and confirmation for this batch.
ERP process: Through process and permissions settings, we standardize the product realization process including design output, change, procurement, materials distribution, machining process, inspection and records, warehouse-in and warehouse-out.
