Optional Voltage Bag-Pulling Scraper Bottom Discharge PLC Control Centrifuges For Pharmaceutical Substances
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015, 01418P10003R2M |
| Model Number: | PLD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD30000-110000/set |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 70 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Features: | Automatic Working, Saving Labor | Place Of Origin: | China |
|---|---|---|---|
| Voltage: | 220v/300v/380v/optional | Control System: | PLC Control |
| Condition: | New | Application: | Solid Liquid Separation, Dewatering |
| Type: | Separating Plant | Core Components: | PLC, Bearing, Motor |
| Key Selling Points: | High Productivity | Warranty: | 1 Year |
Product Description
Working principle
Material to be separated enters into the basket of the centrifuge that is rotating at high speed through a feeding pipe, and under action of the centrifuge field, the material passes through the filter cloth(screen) for filter.
Then the liquid phase discharges through the discharge pipeline, while the solid phase is retained in the basket. Feeding stops once the basket is filled with the material, then wash the solid solid cake, and discharge the washing liquid through filtration.
The centrifuge continues to rotate to dry the solid cake. After the solid cake meets the requirements for separation, the centrifuge reduces its speed, and removes the cake by means of the scraper, then discharge the cake out of the centrifuge.
The centrifuge further reduces its speed so that the pneumatic pulling bag device moves reciprocally to shake off the residual solid cake, thus completely eliminating the solid cake.
Features
In addition to all the series bottom discharge scraper centrifuge, PLD pull action filter centrifuge also features following advantages
1. Residual cake remove is conducted by pulling the filter cloth using pneumatic device,thus offering complete discharge
2. Removable liquid block plate is available in basket to provide reliable self-locking and easy replacement of filter cloth.
3. Built-in cylinder comes with more compacted structure
4. Self-cooling rotary joint delivers more reliable performance
5. Fully enclosed discharge hopper isolates products from driving components on this explosion-proof separation equipment.
Technical Parameters
| Items | Model | |||||||
| PLD800 | PLD1000 | PLD1250 | PLD1400 | PLD1600 | PLD1670 | PLD1800 | ||
| Basket Diameter(mm) | 800 | 1000 | 1250 | 1400 | 1600 | 1670 | 1800 | |
| Effective Basket Height(mm) | 460 | 570 | 700 | 800 | 900 | 920 | 1100 | |
| Basket Volume(L) | 100 | 190 | 400 | 600 | 800/750 | 900 | 1250 | |
| Max. Capacity(kg) | 130 | 230 | 500 | 700 | 1000 | 1125 | 1500 | |
| Motor Power(kw) | 7.5/11 | 15 | 22 | 30/37 | 37/55 | 45 | 55 | |
| Max. Speed(r/min) | 1200/1500 | 1100/1200 | 1000/1200 | 950/1150 | 850/1050 | 850 | 800 | |
| Max. Separation Factor | 645/1007 | 678/805 | 700/1007 | 700/1036 | 647/987 | 675 | 645 | |
| Weight(kg) | Platform construction | 2000 | 3500 | 5000 | 9000 | 12000 | 12500 | 17000 |
| Square box structure | 4000 | 6000 | ||||||
PROCEDURE CONTROL
Huada has a professional quality management team, which implements each link related to users and products from contract review, technical design, material procurement, manufacturing process to after-sales service according to standard operating procedure, to effectively control the full process from design, purchasing, manufacturing to service.
Quality certification and mechanical safety certification
We established quality management system; in 1996, our products passed ISO quality management system certification and from 1998 our products passed mechanical safety certification and reexamination is made each year. Effective quality management system can ensure the product quality,
Contract review
For individual requirements of customers, we make security risk evaluation specific to contract and technical agreement, to ensure that safety requirements. We confirm individual configuration and changes and propose quality plan and opinions.
Process control
Quality plan: For each order, at the time of design output, we put forward the quality plan of the production batch according to the customers’ individual requirements and internal quality control requirements and make clear information like material, configuration, individual changes, inspection requirements and special agreement. The quality plan is the internal control document for purchase, manufacture, inspection and confirmation for this batch.
ERP process: Through process and permissions settings, we standardize the product realization process including design output, change, procurement, materials distribution, machining process, inspection and records, warehouse-in and warehouse-out.
For every process, whether purchasing, internal parts processing or assembly process, we have established strict quality control requirements. For welding, surface coating, main and key parts processing and general assembly, we have formulated detailed operation and inspection regulations to ensure effective control of each process.
Inspection and validation

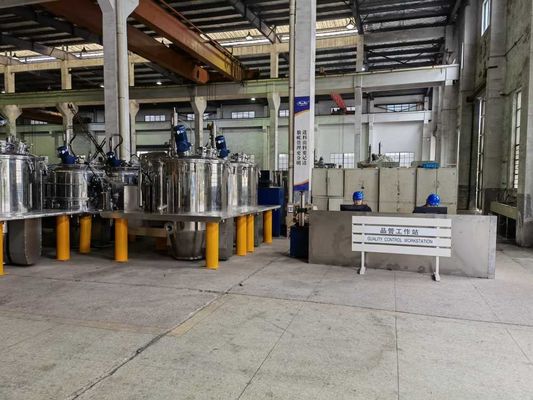

A full-time inspector is assigned to every workshop/production line, who is responsible for process tracking and inspection. One centrifuge can have more than 300 control points for inspection and validation set, to ensure that each centrifuge conforms to standard requirements, design requirements and customers’ individual requirements.
ERP system carries on summary and mathematical analysis of inspection data, puts forward improvement scheme and makes continual improvement.
