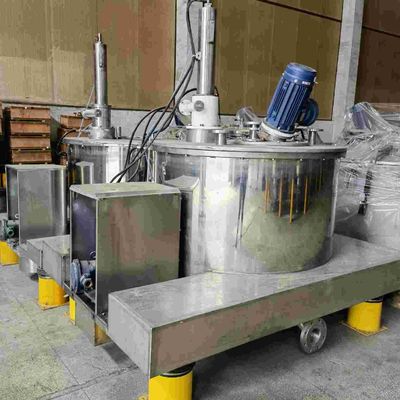

1200rpm Automatic Batch Centrifuge 500L Bottom Discharge Scraper For Food Separation
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 01418P10003R2M |
| Model Number: | LGZ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 80 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Features: | Automatic Working, Saving Labor | MOC: | Stainless Steel |
|---|---|---|---|
| Core Components: | PLC, Bearing, Motor | Machine Control: | PLC Control |
| Operation Type: | Automatic Batch Centrifuge | Discharge Type: | Scraper Bottom Discharge |
| Key Selling Points: | Convenient | Rotating Speed Control: | Frequency Converter |
| High Light: | 1200rpm automatic batch centrifuge,high speed centrifuge 500L,automatic batch centrifuge 500L |
||
Product Description
LGZ CHINA Automatic Batch Centrifuge Bottom Discharge Scraper Halar Lining Centrifuges For Food Separation
Product Description
Introduce
This food centrifuge bypasses batch cross among different products and the negative impacts on filtration efficiency caused by residual cale. Based on these advantages, our chemical centrifuge has been extensively applied to solid-liquid separations of crystallized materials for industries of pharmacy,food and chemical,etc.
Optional configuration
1. Cover: large cover, full cover, flat cover
2. Feeding method: inclined feed tray, side feed tube, cake level detector
3. Scraper discharge: pneumatic, hydraulic, liquid-phase skimming disc.
4. Motor drive: common motor, variable frequency drive motor, explosion-proof motor
5. Protection: nitrogen protection system, explosion proof, vibration protection, temperature protection, electric mechanical interlocking, rotation monitoring and overload protection.
6. CIP system: cleaning ball and spray pipe
7. Nitrogen protection system: automatic nitrogen supplier,hydraulic sealing device and gas-liquid separator
Technical Parameters
| Items | Models | ||||||
| LGZ800 | LGZ1000 | LGZ1250 | LGZ1400 | LGZ1600 | LGZ1800 | ||
| Basket Diameter(mm) | 800 | 1000 | 1250 | 1400 | 1600 | 1800 | |
| Effective Basket Height(mm) | 420 | 550 | 630/800 | 750 | 800/1000 | 1000 | |
| Basket Volume(L) | 100 | 190 | 400/500 | 600 | 800/1000 | 1250 | |
| Max. Capacity(kg) | 135 | 230 | 500/600 | 700 | 1000/1250 | 1500 | |
| Motor Power(kw) | 7.5/11 | 15 | 22/30 | 30/37 | 37/45 | 55 | |
| Max. Speed(r/min) | 1200/1500 | 1100/1200 | 1000/1200 | 950/1150 | 850 | 800 | |
| Max. Separation Factor | 645/1007 | 678/805 | 700/1007 | 700/1036 | 647 | 645 | |
| Weight(kg) | Platform construction | 2000 | 3500 | 5000 | 9000 | 12000 | 17000 |
| Square box structure | 4000 | 6000 | 13000 | ||||
Main features:
1. PLC control is applied with programs which can be designed, automatic operation can be realized even without worker at the physical field .Feeding, preliminary filter, washing, precise filter, discharge can be supervised during the full procedure.
2.started by frequency modulator, the staff of the machine is stable ,the separation coefficient is adjustable.
3. Power consumption brake, non-contact type brake mode ,no frictional powder pollution.
4.The full sealing parts have applied ailicon rubber or fluorine rubber. Nitrogen protection system is applied in the inside part of the centrifugal machine, sealing and explosion prevention requirements can be realized.
5.Reasonable structure design, on line washing system(spraying system}guarantee the clean extent requirement and GMP norm can be corresponded to.
6.Pneumatic system has been applied in automatic operation parts to keep sanitary and clean.
7.Frequency emission material procedure control.
8.Pneumatic auxiliary scraper can be chosen, there is no remaining jam in the rotating drum after discharge.
9.Non foundation installation, concise structure, beautiful appearance, convenient washing and cleaning.
10.Design of vibration reduction & separation is scientific and reasonable, balance pieces and imported high precision liquid type resistance vibration separation system have been applied, the vibration of the machine is fully absorbed by vibration separation system, there is no shock disturbance for the foundation ground or nearby environment.
11 .Balance plate of the device foundation can be used for operation platform which makes operation and maintenance more convenient.
12.Safety protection:check of the rotation speed, protection of the over-vibtation, opening cover, overloaded and overheat of the motor .Lock of the scrapers, electrician bi-control of the up-down machine, scraper and drum.
TECHNOLOGICAL INNOVATION
Leading - Becoming industrial benchmark through continuous research and development and accumulation of application technologies
In recent years, Huada has developed a number of new product and new technologies:
- Vertical bag-pulling bottom discharge centrifuge obtaining national invention patent
- Horizontal thickening and filtration centrifuge
- Intelligent remote control system technology
- Residual filter cake removal technology
- CIP technology
- Centrifuge explosion-proof application technology
- New generation of inert gas protection (explosion-proof) device
- Sludge dewatering and drying system
- Filtration and separation process design and supporting technology
- Drilling mud separation process technology
We don't just satisfy that the centrifuges can meet the separation requirements, but we pay more attention to other issues of how to reduce materials remained in the machines, increase processing output, reduce damage to the solid particles, lower energy consumption, reduce maintenance costs, improve working environment and reliability.
We conduct research and development of system integration technology and intelligent control technology, to provide customers with separation machinery and equipment which is safer, more intelligent, better in performance, environment-friendly and energy saving.
As a member of technical committee for standardization for China’s separation machinery, we have held revision of several industrial standards: GB/T 19815 Centrifuge Safety Requirements, JB/T 10769.1－2007 Types and Basic parameters of Three-column and plate Centrifuges, JB/T 8652－2008 Spiral Discharge Filtering Centrifuges and JB/T 5284-2010 Explosion-proof Peeler Centrifuge.
