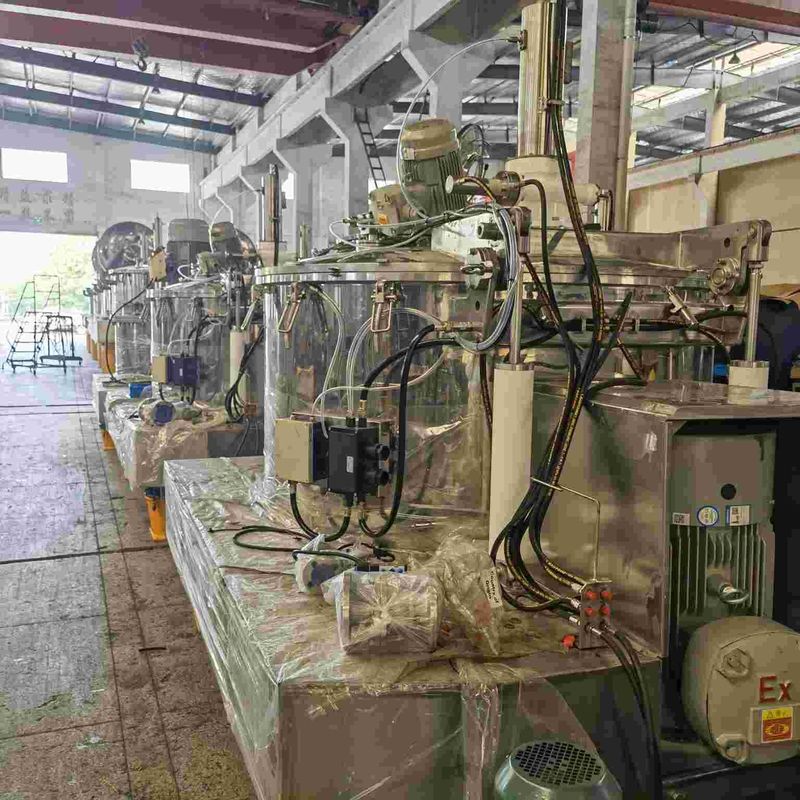

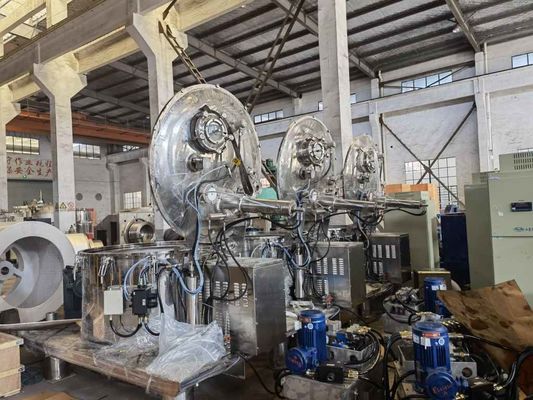

Vertical Bottom Discharge 1500rpm Automatic Batch Centrifuge For Na2SO4 10H2O
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 01418P10003R2M |
| Model Number: | LGZ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 80 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Features: | Automatic Working, Saving Labor | MOC: | Stainless Steel |
|---|---|---|---|
| Core Components: | PLC, Bearing, Motor | Machine Control: | PLC Control |
| Operation Type: | Automatic Batch Centrifuge | Discharge Type: | Scraper Bottom Discharge |
| Key Selling Points: | Convenient | Rotating Speed Control: | Frequency Converter |
| High Light: | Automatic batch centrifuge Na2SO4 10H2O,1500rpm industrial centrifuge separator,1500rpm Automatic batch centrifuge |
||
Product Description
LGZ Automatic Working Saving Labor Vertical Bottom Discharge Scraper Centrifuges Used For Na2SO4*10H2O
Introduce
The machine is mainly used for the separation of the suspension containing fine/ medium particles, and the solid particles of granular, crystal or fiber, especially for the separation of material whose viscosity is high, with fine fineness, it's poisonous or inflammable. It is widely used in the industries of chemical, pharmaceutical, food, light industry and environment protection, etc.
Applied for fine and medium grain solid particle suspension separation, the solid particle could be granule, crystal or fiber type. Especially for the separation which the material has high viscosity, fine grain, poisonous and inflammable.
Widely used in the area of chemical, pharmaceutical, food, light industry, environment protection etc.
Main Features
1.Closed structure, achieve the purpose of sealing explosion-proof, suitable for the application in poisonous, inflammable, explosive places.
2.Controlled by PLC, use inverting speed regulator and braking resistor, combined with hydraulic and pneumatic devices, to achieve manual or automatic operation.
3.With various protection functions, achieve full automatic of start, feeding, dewatering, washing, discharging, unmanned operation. It can clean from all angles, safe and stable, meet GMP standard.
4.Hydraulic scraper discharging system, it is a design of stainless steel closed hydraulic oil cylinder, which can contact the material directly.
Technical Parameters
| Items | Models | ||||||
| LGZ800 | LGZ1000 | LGZ1250 | LGZ1400 | LGZ1600 | LGZ1800 | ||
| Basket Diameter(mm) | 800 | 1000 | 1250 | 1400 | 1600 | 1800 | |
| Effective Basket Height(mm) | 420 | 550 | 630/800 | 750 | 800/1000 | 1000 | |
| Basket Volume(L) | 100 | 190 | 400/500 | 600 | 800/1000 | 1250 | |
| Max. Capacity(kg) | 135 | 230 | 500/600 | 700 | 1000/1250 | 1500 | |
| Motor Power(kw) | 7.5/11 | 15 | 22/30 | 30/37 | 37/45 | 55 | |
| Max. Speed(r/min) | 1200/1500 | 1100/1200 | 1000/1200 | 950/1150 | 850 | 800 | |
| Max. Separation Factor | 645/1007 | 678/805 | 700/1007 | 700/1036 | 647 | 645 | |
| Weight(kg) | Platform construction | 2000 | 3500 | 5000 | 9000 | 12000 | 17000 |
| Square box structure | 4000 | 6000 | 13000 | ||||
Company profile
Huada currently has two production bases, covers floor area of 100000 square meters and plan area of 45000 square meters, as well as owns more than 500 sets of various mechanical processing equipment among which there are over 50 sets of numerical control equipment and more than 100 sets of various testing equipment.
Due to the working characteristic of centrifuges, customers attach great importance to safety of centrifuges in use. As a manufacturer, we do not dare to take it lightly. Centrifuge safety performance is fully controlled in the process of design and manufacture. Each link in design calculation, production process control, test and inspection operates as per procedure to minimize remaining risk.
Our business philosophy is scientific and reasonable design, more perfect manufacturing, professional and standard service. We will provide service to our customers with constant technical innovation, perfect products and professional experience in application.
In 2015, Huada become a wholly-owned holding company of Scimee Sci.& Tech. Co., Ltd. As a public company, Huada will gain greater market development opportunities, more human resources and scientific research investment, more standardized management and better development on the platform of Scimee.
Scimee Sci.& Tech. Co., Ltd. (stock abbreviation: Scimee. Stock code: 300425) focuses on development and application of magnetic separation water purification technology and is the largest domestic magnetic separation water purification equipment manufacturing enterprise.
Based on magnetic separation water purification technology, in light of biochemical treatment technology, biological- ecological water repair technology, membrane technology and other applicable technology in sewage treatment area, our business covers the whole process of integrated services of industrial and municipal water treatment project including investment and financing, consulting assessment, scheme design, equipment integration, construction and operation management and we become a provider of whole water treatment solution and comprehensive environmental services.
