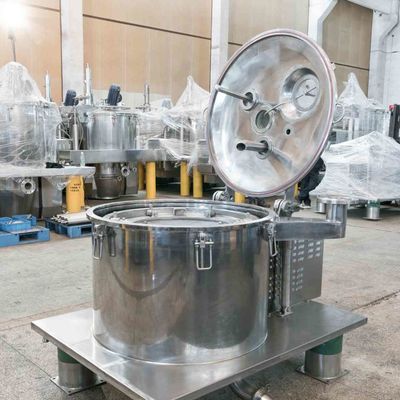

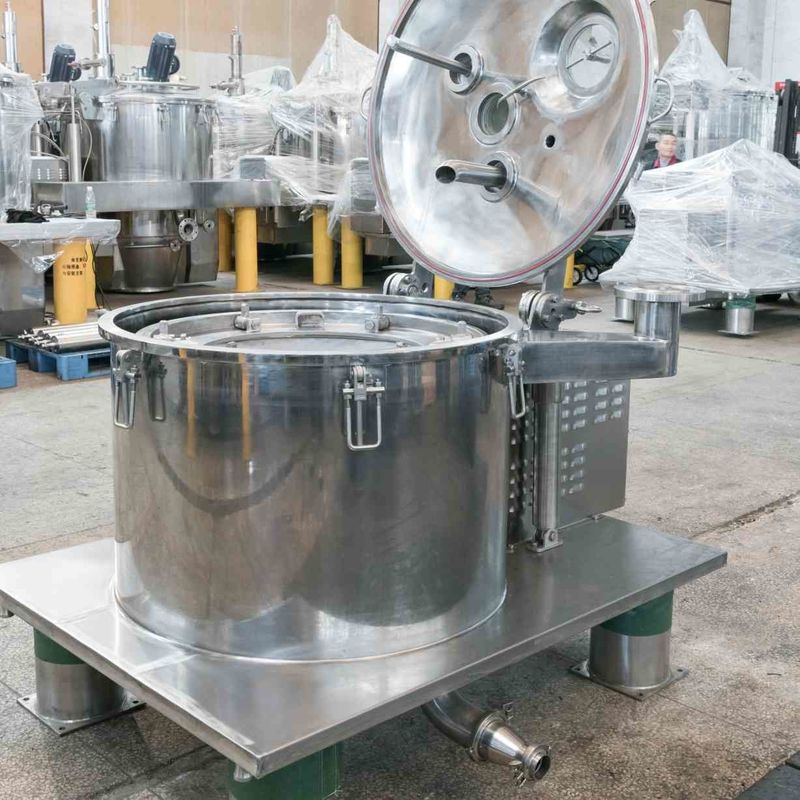

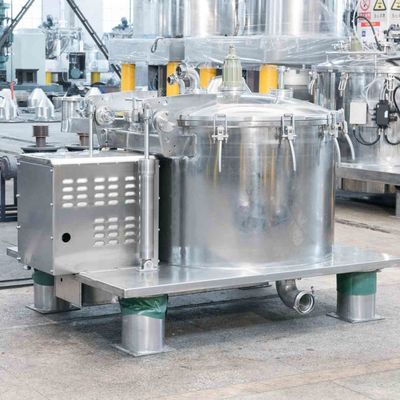

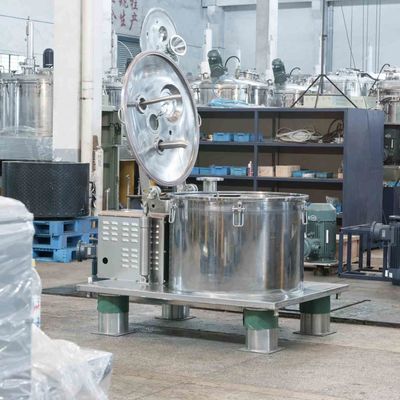

1500rpm SS316L Top Discharge Centrifuge PVC Materials Separating
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 01418P10003R2M |
| Model Number: | PSD800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 60 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 110 sets per month |
|
Detail Information |
|||
| Max. Speed(r/min): | 1500 | Centrifugal Type: | Basket Centrifuge |
|---|---|---|---|
| Discharge: | Bag Lifting Top Discharge | Machine Control: | PLC Control |
| MOC: | Stainless Steel | Basket Volume(L): | 120 |
| Operate: | Manual Batch Operating | Basket Diameter(mm): | 800 |
| Max. Capacity(kg): | 150 | Max. Separation: | 1007 |
| High Light: | 1500rpm Top Discharge Centrifuge,1500rpm vertical centrifuge machine,SS316L Top Discharge Centrifuge |
||
Product Description
PSD Small PVC Materials Separating Stainless Steel 316L Manual Centrifugal Separator With Top Discharge
Product Overview
Aided mechanical discharge is adopted for the PSD centrifuge. Combining high efficiency of the automatic peeler centrifuge and wide application scope of the top discharge centrifuge, this product is advanced in structural design, small in floor covering area, low in failure rate and high in cost performance.
Technical Parameters
| Items | Models |
| PSD800 | |
| Basket Diameter(mm) | 800 |
| Effective Basket Height(mm) | 450 |
| Basket Volume(L) | 120 |
| Max. Capacity(kg) | 150 |
| Max. Speed(r/min) | 1500 |
| Max. Separation Factor | 1007 |
| Motor Power(kw) | 7.5 |
| Dimension(mm) | 1730*1200*1320 |
| Weight(kg) | 1500 |
Working Principle

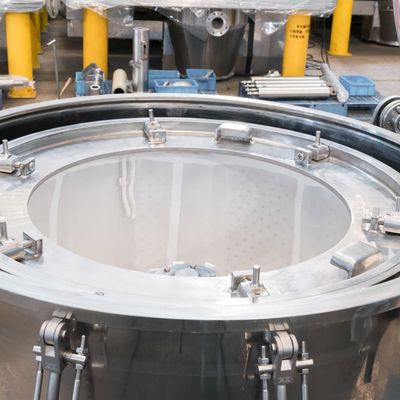

Under the action of centrifugal force, the materials reach the basket wall, where the liquid phase passes through the filtering medium covered on the basket wall and then flows through the pores on the wall to the inner wall of the enclosure, then drops off to the bottom tray and is discharged out via the liquid discharge port. While the solid matters are retained inside the basket and fully washed to complete the solid-liquid separation. After the equipment is shutdown, open the flippable cover, remove the filter bag with special lifting appliances, transfer it to the unloading area for discharging. After that, install the basket lip and filter bag back, lock the basket lip, close the flippable cover and lock it, and at this time, the next circulation can be started.
Scope of Application
This product can be used for the solid-liquid separation of suspensions containing solid particles, as well as for the solid-liquid separation of fibrous materials, such as gypsum, copper sulfate, potassium chloride, borax, dyes, pesticides, salt, monosodium glutamate, food additives, starch, sugar, chemical seasoners, antibiotics, vitamins, copper, zinc, aluminum and other minerals, metal refining, sludge treatment, and sewage treatment has been widely applied in the pharmaceutical, chemical, food, environmental protection, energy and other industries.
Technological innovation
Focus – Huada focuses on research and development, manufacture and application of filtration and separation technology.
Over 20 years , Huada Ltd. has been considering technological innovations as one of the corporate strategies. We have recruited a group of talented engineers and technicians professional in filtration and separation technology to research and develop the centrifuges with better separation efficiency, lower energy consumption, better convenient operation, higher reliability and closer focus on the separating materials.
In addition , working environment, automation and individualization are always taken into account throughout the course of design and manufacturing we still keep continual summarizing our experience, and continually change and improve our design in order to optimize our products.
