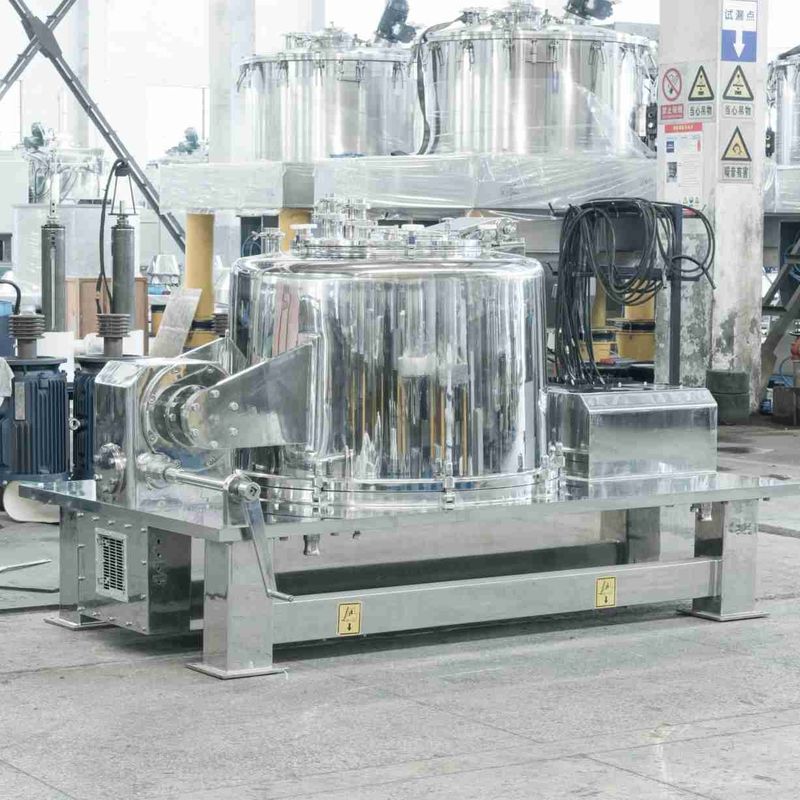

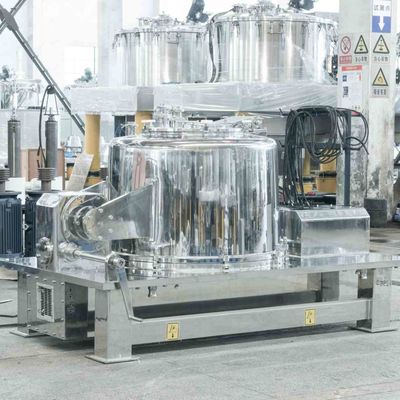

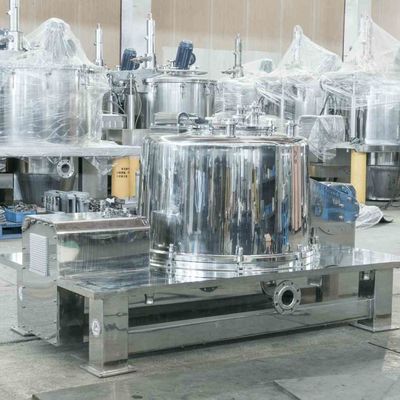

1000rpm Top Discharge Centrifuge Pharmaceutical Centrifuge With CE
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 |
| Model Number: | PQFD1250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD25000/set |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 80 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Effective Basket Height(mm): | 450 | Motor Power(kw): | 18.5/22 |
|---|---|---|---|
| Machine Control: | PLC Control | Max. Capacity(kg): | 375 |
| Dimension(mm): | 2770*1800*1510 | Rotating Speed Control: | Frequency Converter |
| Weight(kg): | 5000 | Max. Speed(r/min): | 1000/1200 |
| Highlight: | 1000rpm Top Discharge Centrifuge,1000rpm pharmaceutical centrifuge,Top Discharge Centrifuge CE |
||
Product Description
PQFD Efficiency Eco-Friendly Pharmaceutical Centrifuge With CE Certification
Technical Parameters
| Items | Models |
| PQFD1250 | |
| Basket Diameter(mm) | 1250 |
| Effective Basket Height(mm) | 450 |
| Basket Volume(L) | 300 |
| Max. Capacity(kg) | 375 |
| Max. Speed(r/min) | 1000/1200 |
| Max. Separation Factor | 700/1007 |
| Motor Power(kw) | 18.5/22 |
| Dimension(mm) | 2770*1800*1510 |
| Weight(kg) | 5000 |
Scope/Field of Application
PQSD centrifuges are suitable for the washing and solid-liquid separation of suspensions containing solid particles, with the particle size of 0.02mm~5mm and solid content above 10%, 50% to the maximum.
This product is commonly used for the treatment of gypsum, ammonium sulphate, mirabilite, ferric sulphate, copper sulphate, nickel sulphate, potassium chloride, acetic acid, borax, soda, rubber additive, dye, starch, sugar, vitamin, antibiotic, herbicide, insect repellent, copper, zinc, aluminum, acid discharge gypsum, metal refining, sludge after water purification, sludge in sewage, and other kinds of chemicals and pharmaceuticals.
PQFD
Main Configurations
- Big turnover cover: hand-controlled reducing mechanism or hydraulic drive.
- Base: foundation platform and stainless steel liquid damper.
- Washing mode: washing pipe, atomizing & washing pipe, CIP online cleaning system.
- Filtering medium: imported sintering screen, filter cloth, etc.
- Flip cover configuration: overall turnover cover + small turnover cover, explosion-proof sight class with lamp, diluting pipe, observation mirror, feeding pipe.
- Electric configuration: PLC control, variable-frequency (VF) control, electric control cabinet (ordinary type and explosion-proof type), motor (ordinary type, explosion-proof type, VF type and energy saving type), field operation box (ordinary type and explosion-proof type). Nitrogen protection system, oxygen content detection system, liquid seal, gas seal, etc.
- Other requirements of customer
Main Features
All-directional online cleaning and disinfection
CIP online cleaning system is configured to complete all-directional cleaning and disinfection of the inner cavities, meeting the GMP standards and the requirements for cleanliness.
Advanced structural design
Enclosed modular structure is adopted to avoid contamination caused by belt-worn dust and foreign matters.
Precise polishing is adopted for the parts requiring contact with the materials and no sanitary dead angle exists inside the equipment, meeting the GMP standards.
Equipment has low gravity center, small floor covering area and is easy to maintain.
Variable-frequency startup and stepless speed regulation are designed to ensure stable operation and low failure rate.
Internal nitrogen filling structure and nitrogen protection system are configured to meet the requirements for explosion protection in occasions involving toxic, flammable and explosive materials.
Wide application scope
It can be used for the separation of not only suspensions containing solid particles but also fibrous materials.
Manual discharging for better grain protection
Customers Are More at Ease with Guaranteed Services
Improvement of Service Team - Making Services More Efficient
Service capacity: 23 regular after-sales service employees + 7 emergency service employees + 15 mobile service employees, of which, those with service experience for more than 10 years account for 35%, those with service experience for 5-10 years account for 40%, and those with service experience for 3-5 years account for 25%.
Service qualifications: A history of customer on-site services for nearly 30 years, experience in providing services to more than 5,000 customers, a total of more than 200,000 service times.
Service results: Customer satisfaction of more than 95%.
We only obtain information about the separation process within the scope of your permission and guarantee the security of your data.
Establishment of Strategic Direction - Making Services More Reassuring
Our mission is "to provide customers with high-tech centrifuges so that more people can enjoy perfect products and services in a convenient and intelligent way, and to grow into a provider of green industrial solutions based on high-end intelligent manufacturing". We have been adhering to the development concept of "service as the core and customer satisfaction as the purpose". Over the years, we have continuously improved company service management, service team building and service quality to provide customers with more professional and standardized services.
Construction of After-sales Outlets - Making Services More Convenient
Seven service outlets + one service center, realizing emergency service within 8h, inter-provincial service within 12h, and national service within 48h.
