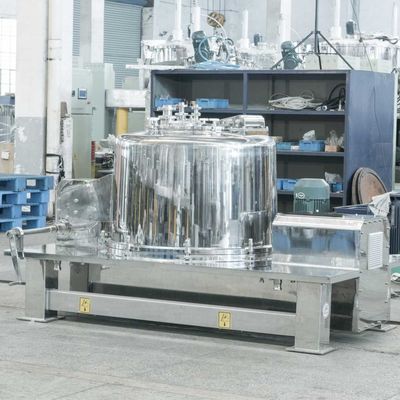

1100rpm Pharma Centrifuge Machine Manual Peeler Discharge
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 |
| Model Number: | PQFB1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD23000/set |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 70 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Basket Diameter(mm): | 1000 | Centrifugal Type: | Basket Centrifuge |
|---|---|---|---|
| Max. Speed(r/min): | 1100/1200 | Machine Control: | PLC Control |
| Max. Separation Factor: | 680/805 | Certificate: | ISO9001 |
| Motor Power(kw): | 11 | Weight(kg): | 2600 |
| High Light: | pharma centrifuge machine 11kW,1100rpm pharma centrifuge,1100rpm pharma centrifuge machine |
||
Product Description
PQFB Manual Peeler Discharge Automatic Working Saving Labor Pharmaceutical Centrifuges With Full-Turnover Cover
PQFB series centrifuges are applicable to the solid-liquid separation in the clean areas with certain requirements for sanitation. Being aesthetic in appearance, high in manufacturing technology, stable in operation, easy in maintenance, and complying with the GMP standards and high requirements for sanitation, this product has been broadly applied in pharmaceutical production, food production and fine chemical engineering and other industries.
PQFB
Technical Parameters
| Items | Models |
| PQFB1000 | |
| Basket Diameter(mm) | 1000 |
| Effective Basket Height(mm) | 425 |
| Basket Volume(L) | 145 |
| Max. Capacity(kg) | 200 |
| Max. Speed(r/min) | 1100/1200 |
| Max. Separation Factor | 680/805 |
| Motor Power(kw) | 11 |
| Dimension(mm) | 2460*1400*1400 |
| Weight(kg) | 2600 |
Main Configurations

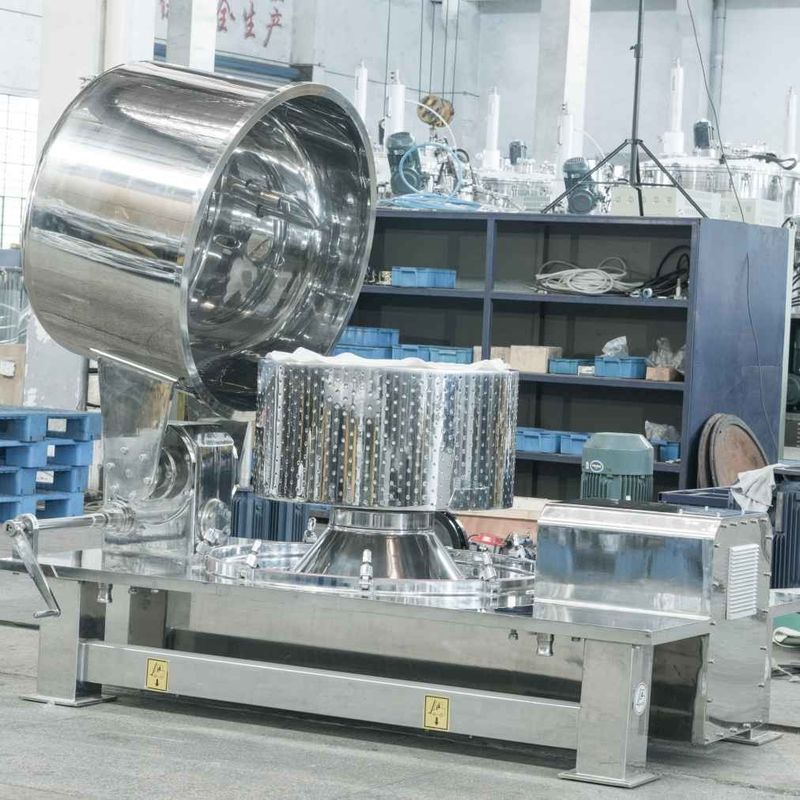

- Flip cover configuration: overall turnover cover + small turnover cover, explosion-proof sight class with lamp, diluting pipe, observation mirror, feeding pipe.
- Electric configuration: PLC control, variable-frequency (VF) control, electric control cabinet (ordinary type and explosion-proof type), motor (ordinary type, explosion-proof type, VF type and energy saving type), field operation box (ordinary type and explosion-proof type). Nitrogen protection system, oxygen content detection system, liquid seal, gas seal, etc.
- Other requirements of customer
Main Features
Advanced structural design
Enclosed modular structure is adopted to avoid contamination caused by belt-worn dust and foreign matters.
Precise polishing is adopted for the parts requiring contact with the materials and no sanitary dead angle exists inside the equipment, meeting the GMP standards.
Equipment has low gravity center, small floor covering area and is easy to maintain.
Variable-frequency startup and stepless speed regulation are designed to ensure stable operation and low failure rate.
Internal nitrogen filling structure and nitrogen protection system are configured to meet the requirements for explosion protection in occasions involving toxic, flammable and explosive materials.
Wide application scope
It can be used for the separation of not only suspensions containing solid particles but also fibrous materials.
Manual discharging for better grain protection
Multiple safety protections
Nitrogen protection system, liquid seal, gas seal, overvibration protection, cover opening protection, overload protection, electromagnetic interlocking, etc.
