Waste Oil Purification 1800rpm Stainless Steel Centrifuge Dual Phase Explosion Proof
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 |
| Model Number: | PSB600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD8000/set |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 50 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Basket Diameter(mm): | 600 | Discharge: | Bag Top Discharge |
|---|---|---|---|
| Max. Separation Factor: | 860/1087 | MOC: | Stainless Steel |
| Effective Basket Height(mm): | 325 | Operate: | Manual Batch Operating |
| Rotating Speed Control: | Frequency Converter | Online Washing System: | Optional |
| Highlight: | stainless steel centrifuge dual phase,1800rpm basket centrifuge machine,1800rpm stainless steel centrifuge |
||
Product Description

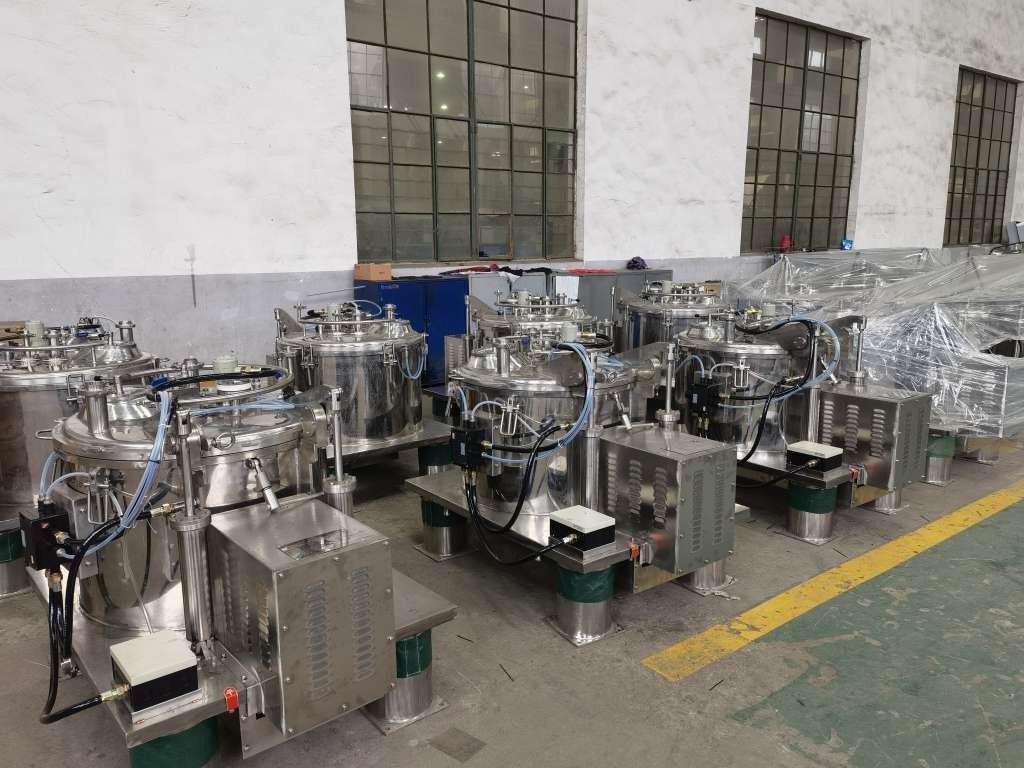

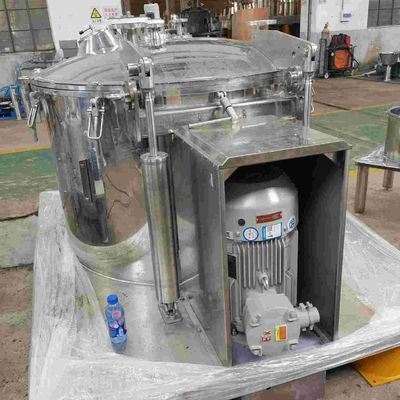

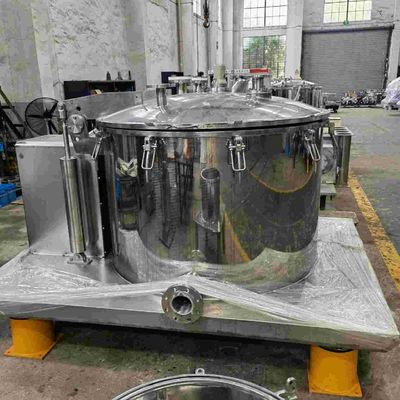

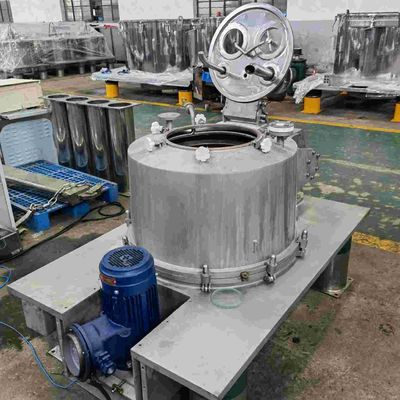

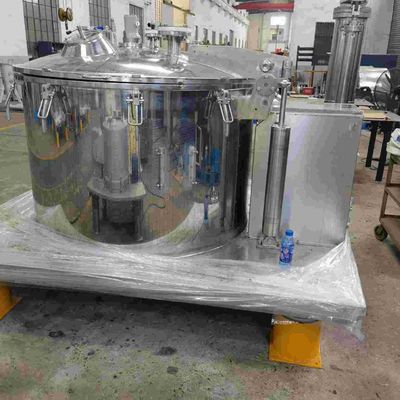

PSB Model Small Explosion-Proof Manual Waste Oil Purification Saving Labor Basket Dual Phase Steel Centrifugal Machines
The PSB series are enclosed manual top discharge and filtration centrifuges designed in line with the GMP standards and environmental protection requirements, which can be used for separating a wide range of materials. This product is highly applicable to the separation of various suspensions and fibrous materials with high temperature, strong viscosity and small particle sizes (minimum size of 1μm). Characterized by high separation factor, simple structure and high performance, the PBZ300 and 450 products are commonly selected as testing machines by various research institutions.
Main Features
- In compliance with the GMP standards: enclosed structure designed to effectively avoid contamination of materials. Configured with CIP online cleaning system to realize all-around cleaning.
- Wide opening structure designed for easier discharging and replacement of the filter bag.
- Small floor covering area, easy maintenance, low failure rate and long service life.
Technical Parameters
| Items | Models |
| PSB600 | |
| Basket Diameter(mm) | 600 |
| Effective Basket Height(mm) | 325 |
| Basket Volume(L) | 47 |
| Max. Capacity(kg) | 70 |
| Max. Speed(r/min) | 1600/1800 |
| Max. Separation Factor | 860/1087 |
| Motor Power(kw) | 3/4 |
| Dimension(mm) | 1470*990*1150 |
| Weight(kg) | 1000/1200 |
Brief Introduction:
The centrifuge is top discharging, hermetic closure type equipment. The material is fed into the drum through the feeding pipe on the hermetic closure casing; under the action of the centrifuge force field, the liquid-phase passes through the filter medium and the discharged out of the machine, while the solid-phase material is retained inside the drum, after the machine is stopped, the material is discharged from the top. The centrifuge has such features as smooth running, easy & convenient operation as well as conducting feeding, washing and dehydrating under the state of hermetic closure, etc.
Our Advantages
a, High effective, low cost.
b, Auto control, easy operation.
c, Short time of extraction.
d, 304 & 316L Sanitary Stainless Steel
Explosion-proof
If the centrifuge works in the environment, where there are some explosive substances, the centrifuge should be explosion-proof. If the centrifuge becomes really explosion-proof, it should take a variety of measures in mechanical, electrical control and the accessories selection.
Electric control: explosion-proof isolator, non-touch dynamic braking system, static grounding and explosion-proof automatic control.
Mechanical system: explosion-proof motor, explosion-proof light, anti-collision and anti-static driving belt.
Explosion-proof accessories: nitrogen protection system, on-site explosion-proof control button.
Therefore, for those environments required explosion-proof, users can specify the filtration medium, requirement and degree of explosion-proof when they take orders, in order to buy the right equipment to meet the requirements of explosion-proof.
Refer to Application Technology of Centrifuge in Explosion Proof Site P103.
