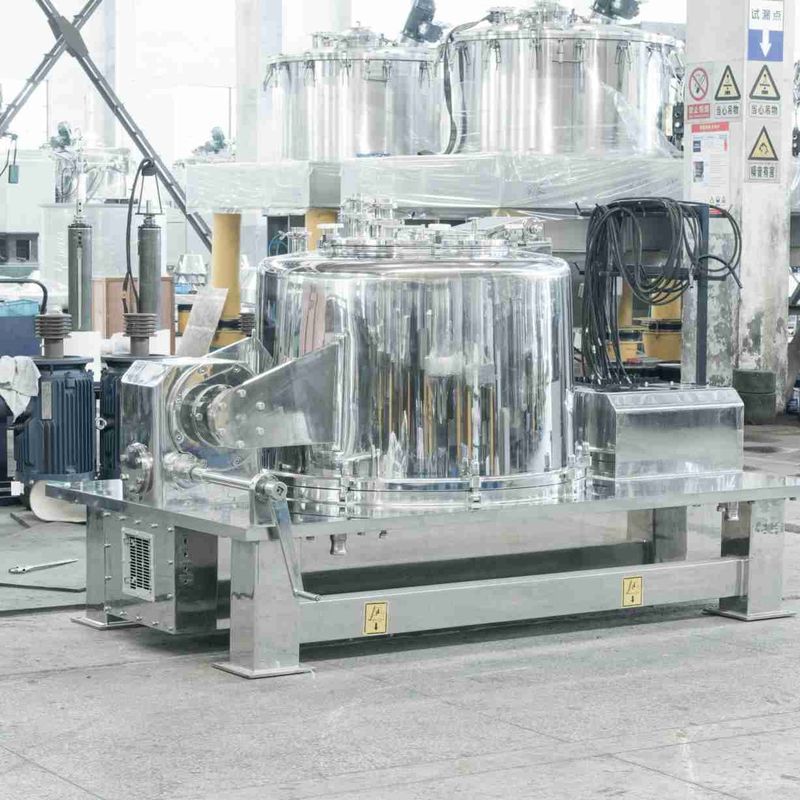

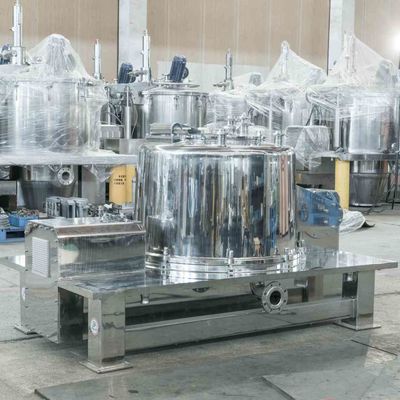

Full Turnover Cover 145L Top Discharge Centrifuge 1200rpm
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 |
| Model Number: | PQFD1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD22000/set |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 70 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Effective Basket Height(mm): | 425 |
|---|---|---|---|
| Discharge: | Bag Top Discharge | Basket Volume(L): | 145 |
| Certificate: | ISO9001 | Max. Separation Factor: | 680/805 |
| Rotating Speed Control: | Frequency Converter | Online Washing System: | Optional |
| Highlight: | 145L Top Discharge Centrifuge,1200rpm pharma centrifuge,Top Discharge Centrifuge 1200rpm |
||
Product Description
PQFD Full-Turnover Cover High-Tech Top Discharge Pharma Technological Centrifuges - GMP
PQFB/PQSD series centrifuges are applicable to the solid-liquid separation in the clean areas with certain requirements for sanitation. Being aesthetic in appearance, high in manufacturing technology, stable in operation, easy in maintenance, and complying with the GMP standards and high requirements for sanitation, this product has been broadly applied in pharmaceutical production, food production and fine chemical engineering and other industries.
PQFD
Technical Parameters
| Items | Models |
| PQFD1000 | |
| Basket Diameter(mm) | 1000 |
| Effective Basket Height(mm) | 425 |
| Basket Volume(L) | 145 |
| Max. Capacity(kg) | 200 |
| Max. Speed(r/min) | 1100/1200 |
| Max. Separation Factor | 680/805 |
| Motor Power(kw) | 11 |
| Dimension(mm) | 2370*1400*1490 |
| Weight(kg) | 3000 |
Main applications
Apply to separating material with granulate particle shape, but also fibers, like plasters, bluestone, potassium chloride, borax, dyestuffs, pesticides, salts, gourmet powders, foodstuff additives, chemical flavors, antibiotics, vitamins, the metals like copper, zinc and aluminum, metal products, sludge, etc.
Main Features
Excellent corrosion resistance
Stainless steel, anti-corrosion alloy or anti-corrosion coating is adopted for the parts requiring contact with materials.
Easy Maintenance

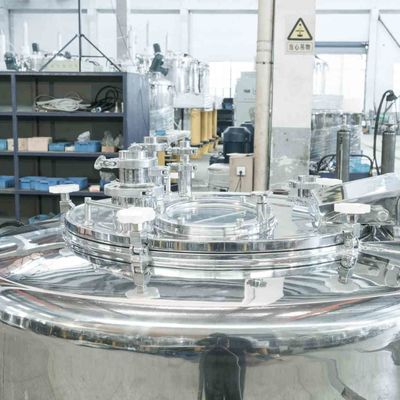

Complete overall turnover cover design allows flip angle of over 90°; overall structure of basket is exposed for easier cleaning of the machine and replacement of the filter cloth.
All-directional online cleaning and disinfection
CIP online cleaning system is configured to complete all-directional cleaning and disinfection of the inner cavities, meeting the GMP standards and the requirements for cleanliness.
Advanced structural design
Enclosed modular structure is adopted to avoid contamination caused by belt-worn dust and foreign matters.
Precise polishing is adopted for the parts requiring contact with the materials and no sanitary dead angle exists inside the equipment, meeting the GMP standards.
Equipment has low gravity center, small floor covering area and is easy to maintain.
Variable-frequency startup and stepless speed regulation are designed to ensure stable operation and low failure rate.
Internal nitrogen filling structure and nitrogen protection system are configured to meet the requirements for explosion protection in occasions involving toxic, flammable and explosive materials.
Wide application scope
It can be used for the separation of not only suspensions containing solid particles but also fibrous materials.
Manual discharging for better grain protection
Multiple safety protections
Nitrogen protection system, liquid seal, gas seal, overvibration protection, cover opening protection, overload protection, electromagnetic interlocking, etc.
