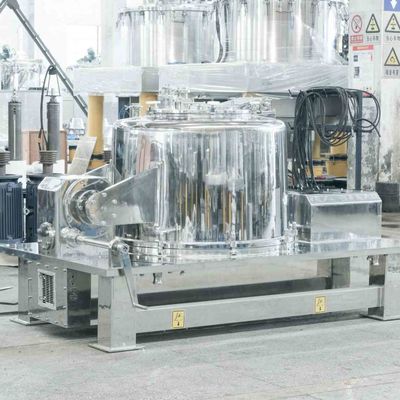

Fully Opening Cover Manual Industrial Centrifuge Machine 1500rpm Top Discharge
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 |
| Model Number: | PQFD800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD20000/set |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 60 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Centrifugal Type: | Basket Centrifuge | Max. Capacity(kg): | 140 |
|---|---|---|---|
| Max. Separation Factor: | 645/1007 | MOC: | Stainless Steel |
| Dimension(mm: | 2200*1250*1310 | Operate: | Manual Batch Operating |
| Weight(kg): | 2300 | Online Washing System: | Optional |
| Highlight: | industrial centrifuge machine Top Discharge,1500rpm basket centrifuge machine,industrial centrifuge machine 1500rpm |
||
Product Description
PQFD High-Tech Fully Opening Cover Manual Top Discharge Industrial General Machinery Industry
Operating principle

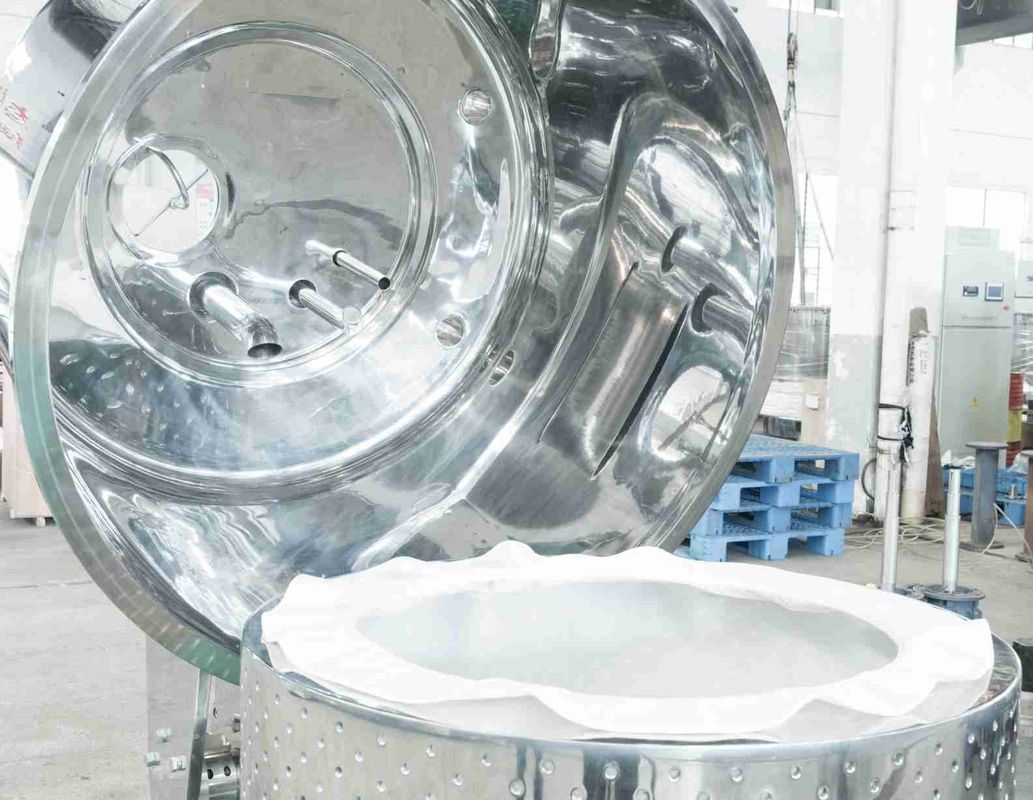

Once the materials to be separated enter the fast-spinning basket, it will be filtrated by the filter liner under the centrifugal force. The liquid flows out through the liquid outlet, but solids deposit on the internal wall of the basket. Once the solid cake reaches the rate capacity, feeding stops. Wash the solids cake, and then drain out the washing water. Finally stop the machine. Use the lifting tool or crane to lift out the filter cloth with solid cake, and move to the discharging place. Open the filter cloth and discharge the solid cake. Put the filter cloth back to the centrifuge and move to next batch.
PQFD
Technical Parameters
| Items | Models |
| PQFD800 | |
| Basket Diameter(mm) | 800 |
| Effective Basket Height(mm) | 400 |
| Basket Volume(L) | 100 |
| Max. Capacity(kg) | 140 |
| Max. Speed(r/min) | 1200/1500 |
| Max. Separation Factor | 645/1007 |
| Motor Power(kw) | 7.5 |
| Dimension(mm) | 2200*1250*1310 |
| Weight(kg) | 2300 |
Scope/Field of Application
PQSD centrifuges are suitable for the washing and solid-liquid separation of suspensions containing solid particles, with the particle size of 0.02mm~5mm and solid content above 10%, 50% to the maximum.
This product is commonly used for the treatment of gypsum, ammonium sulphate, mirabilite, ferric sulphate, copper sulphate, nickel sulphate, potassium chloride, acetic acid, borax, soda, rubber additive, dye, starch, sugar, vitamin, antibiotic, herbicide, insect repellent, copper, zinc, aluminum, acid discharge gypsum, metal refining, sludge after water purification, sludge in sewage, and other kinds of chemicals and pharmaceuticals.
Main Features
1, Wide range of applications. No damage to the particle shape.
2, Inverter start-up, smooth starting, adjustable relative centrifugal force. Tightness structure with silicone rubber or fluoroelastomers seals. Nitrogen protection system (optional) is for anti-explosion applied to poisonous, flammable and explosive environment.
3, It can be configured with manual, hydraulic and a variety of forms of flip.
