Top Discharge GMP Filtration Manual Centrifuge Machine Dual Phase Steel 2507
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 |
| Model Number: | PQFB600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD11000/set |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 60 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 90 sets per month |
|
Detail Information |
|||
| Basket Diameter(mm): | 600 | Effective Basket Height(mm): | 325 |
|---|---|---|---|
| Discharge: | Bag Top Discharge | Basket Volume(L): | 47 |
| MOC: | Stainless Steel | Certificate: | ISO9001 |
| Operate: | Manual Batch Operating | Online Washing System: | Optional |
| High Light: | GMP Filtration manual centrifuge machine,Steel 2507 industrial basket centrifuge,manual centrifuge machine Steel 2507 |
||
Product Description

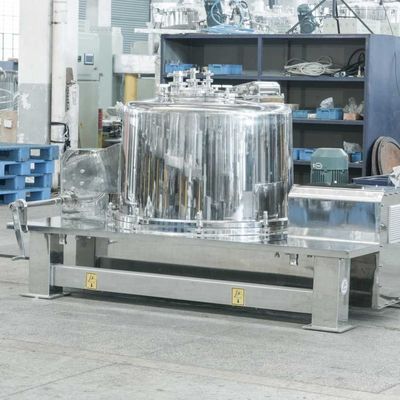

PQFB Manual Top Discharge GMP Filtration Dual Phase Steel 2507 Separating Plant With Full Turnover Cover
PQFB series centrifuges are applicable to the solid-liquid separation in the clean areas with certain requirements for sanitation. Being aesthetic in appearance, high in manufacturing technology, stable in operation, easy in maintenance, and complying with the GMP standards and high requirements for sanitation, this product has been broadly applied in pharmaceutical production, food production and fine chemical engineering and other industries.
Scope/Field of Application
PQFB centrifuges are suitable for the washing and solid-liquid separation of suspensions containing solid particles, with the particle size of 0.02mm~5mm and solid content above 10%, 50% to the maximum.
This product is commonly used for the treatment of gypsum, ammonium sulphate, mirabilite, ferric sulphate, copper sulphate, nickel sulphate, potassium chloride, acetic acid, borax, soda, rubber additive, dye, starch, sugar, vitamin, antibiotic, herbicide, insect repellent, copper, zinc, aluminum, acid discharge gypsum, metal refining, sludge after water purification, sludge in sewage, and other kinds of chemicals and pharmaceuticals.
Main Configurations
- Big turnover cover: hand-controlled reducing mechanism or hydraulic drive.
- Base: foundation platform and stainless steel liquid damper.
- Electric configuration: PLC control, variable-frequency (VF) control, electric control cabinet (ordinary type and explosion-proof type), motor (ordinary type, explosion-proof type, VF type and energy saving type), field operation box (ordinary type and explosion-proof type). Nitrogen protection system, oxygen content detection system, liquid seal, gas seal, etc.
- Other requirements of customer
Main Features
Excellent corrosion resistance
Stainless steel, anti-corrosion alloy or anti-corrosion coating is adopted for the parts requiring contact with materials.
Easy Maintenance

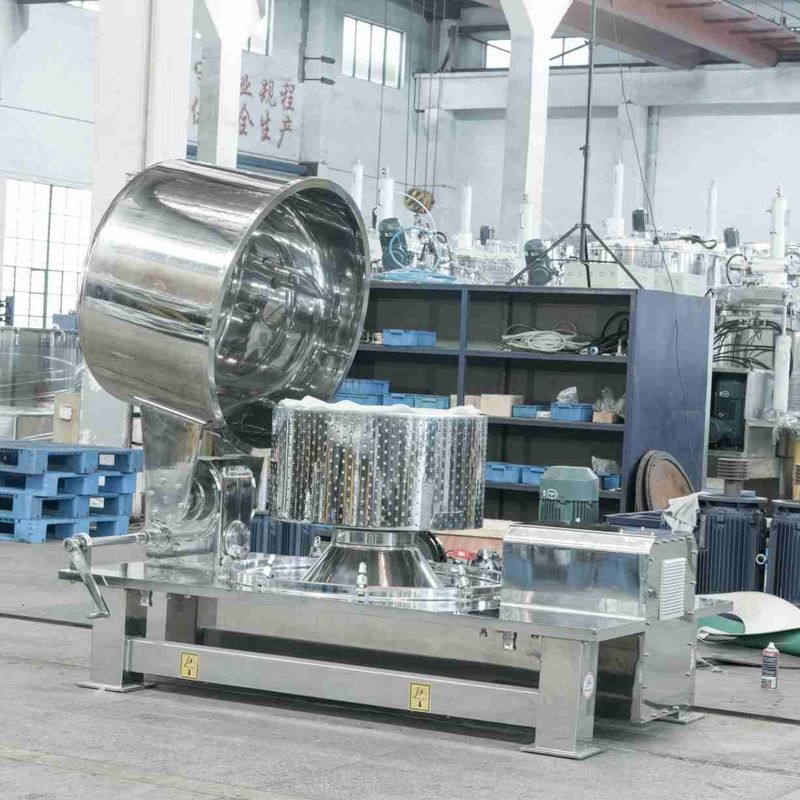

Complete overall turnover cover design allows flip angle of over 90°; overall structure of basket is exposed for easier cleaning of the machine and replacement of the filter cloth.
All-directional online cleaning and disinfection
CIP online cleaning system is configured to complete all-directional cleaning and disinfection of the inner cavities, meeting the GMP standards and the requirements for cleanliness.
Technical Parameters
| Items | Models |
| PQFB600 | |
| Basket Diameter(mm) | 600 |
| Effective Basket Height(mm) | 325 |
| Basket Volume(L) | 47 |
| Max. Capacity(kg) | 70 |
| Max. Speed(r/min) | 1600 |
| Max. Separation Factor | 860 |
| Motor Power(kw) | 4 |
| Dimension(mm) | 1880*1100*1100 |
| Weight(kg) | 1200 |
