PVC Materials Separating 1100rpm Industrial Centrifuge Separator Manual Sedimentation
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 01418P10003R2M |
| Model Number: | PSD1200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 50 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Basket Diameter(mm): | 1200 | Effective Basket Height(mm): | 550 |
|---|---|---|---|
| Discharge: | Bag Lifting Top Discharge | Machine Control: | PLC Control |
| MOC: | Stainless Steel | Certificate: | ISO9001 |
| Operate: | Manual Batch Operating | Max. Speed(r/min): | 1100 |
| High Light: | 1100rpm industrial centrifuge separator,1100rpm manual centrifuge machine,GB industrial centrifuge separator |
||
Product Description

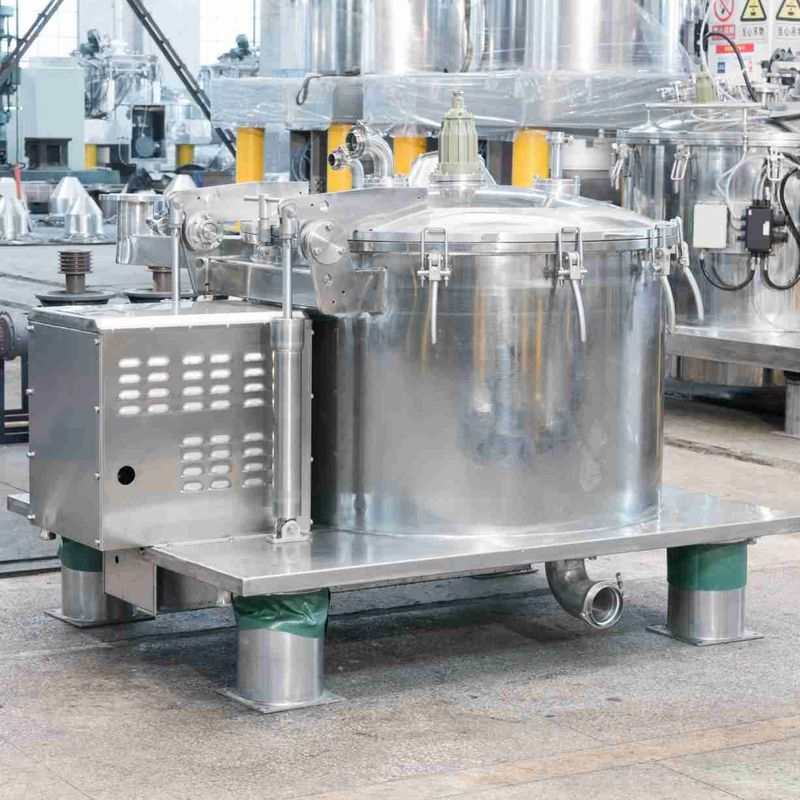

PSD Small PLC Control PVC Materials Separating Manual Sedimentation Basket Centrifugal Separator With Top Discharge
Product Overview
Aided mechanical discharge is adopted for the PSD centrifuge. Combining high efficiency of the automatic peeler centrifuge and wide application scope of the top discharge centrifuge, this product is advanced in structural design, small in floor covering area, low in failure rate and high in cost performance.
Technical Parameters
| Items | Models |
| PSD1200 | |
| Basket Diameter(mm) | 1200 |
| Effective Basket Height(mm) | 550 |
| Basket Volume(L) | 270 |
| Max. Capacity(kg) | 340 |
| Max. Speed(r/min) | 1100 |
| Max. Separation Factor | 812 |
| Motor Power(kw) | 15 |
| Dimension(mm) | 2300*1550*1500 |
| Weight(kg) | 3200 |
Working Principle

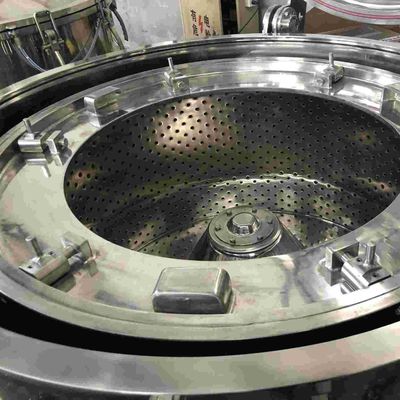

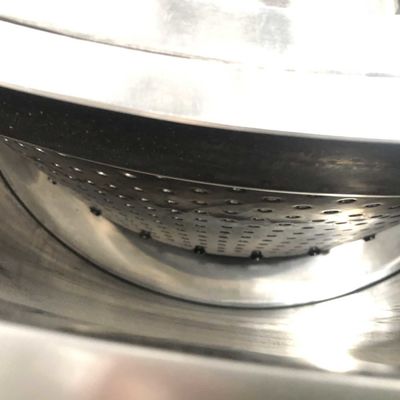

Once the materials to be separated enter the fast-spinning basket, it will be filtrated by the filter liner under the centrifugal force. The liquid flows out through the liquid outlet, but solids deposit on the internal wall of the basket. Once the solid cake reaches the rate capacity, feeding stops. Wash the solids cake, and then drain out the washing water.
Finally stop the machine. Use the lifting tool or crane to lift out the filter cloth with solid cake, and move to the discharging place. Open the filter cloth and discharge the solid cake. Put the filter cloth back to the centrifuge and move to next batch.
Main applications
Apply to separating material with granulate particle shape, but also fibers, like plasters, bluestone, potassium chloride, borax, dyestuffs, pesticides, salts, gourmet powders, foodstuff additives, chemical flavors, antibiotics, vitamins, the metals like copper, zinc and aluminum, metal products, sludge, etc.
Product Features
• Low labor intensity and high efficiency: configured with a hydraulic cantilever crane for mechanical discharge.
• Grains less prone to breakage: special-purpose slings used to lift and discharge the materials as a whole.
• Stable operation: low gravity center of the equipment designed and liquid damping device adopted to attenuate vibration.
• Variable frequency control: stable startup and adjustable separation factor.
• Easy replacement of filter cloth: basket lip designed with special structure that can be disassembled fast.
Technological innovation
In recent years, Huada has developed a number of new product and new technologies:
- Vertical bag-pulling bottom discharge centrifuge obtaining national invention patent
- Horizontal thickening and filtration centrifuge
- Intelligent remote control system technology
- Residual filter cake removal technology
- CIP technology
- Centrifuge explosion-proof application technology
- New generation of inert gas protection (explosion-proof) device
- Sludge dewatering and drying system
- Filtration and separation process design and supporting technology
- Drilling mud separation process technology
