Aluminium Hydroxide Separating Industrial Basket Centrifuge 780rpm Rubber Lined
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 01418P10003R2M |
| Model Number: | PSD1250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 60 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Centrifugal Type: | Basket Centrifuge |
|---|---|---|---|
| Effective Basket Height(mm): | 630 | Max. Separation Factor: | 700/1007 |
| MOC: | Stainless Steel | Motor Power(kw): | 18.5/22 |
| Operate: | Manual Batch Operating | Basket Diameter(mm): | 1250 |
| High Light: | industrial basket centrifuge 780rpm,910L stainless steel centrifuge,910L industrial basket centrifuge |
||
Product Description
PSD Small Manual Aluminium Hydroxide Separating Basket Stainless Steel Rubber Lined Centrifuge With Bag-Lifting
Technical Parameters
| Items | Models | ||||||
| PSD800 | PSD1000 | PSD1200 | PSD1250 | PSD1500 | PSD1600 | PSD1800 | |
| Basket Diameter(mm) | 800 | 1000 | 1200 | 1250 | 1500 | 1600 | 1800 |
| Effective Basket Height(mm) | 450 | 520 | 550 | 630 | 680 | 800 | 750 |
| Basket Volume(L) | 120 | 200 | 270 | 400 | 555 | 800 | 910 |
| Max. Capacity(kg) | 150 | 250 | 340 | 500 | 700 | 1000 | 1100 |
| Max. Speed(r/min) | 1500 | 1200/1400 | 1100 | 1000/1200 | 850 | 850 | 780 |
| Max. Separation Factor | 1007 | 805/1096 | 812 | 700/1007 | 606 | 647 | 612 |
| Motor Power(kw) | 7.5 | 11/15 | 15 | 18.5/22 | 30 | 37 | 37 |
| Dimension(mm) | 1730*1200*1320 | 1970*1400*1500 | 2300*1550*1500 | 2550*1800*1780 | 2750*2200*1750 | 3200*2400*2150 | 3300*2500*2150 |
| Weight(kg) | 1500 | 2500/2700 | 3200 | 4000/5000 | 6500 | 8500 | 10000 |
Working Principle
Under the action of centrifugal force, the materials reach the basket wall, where the liquid phase passes through the filtering medium covered on the basket wall and then flows through the pores on the wall to the inner wall of the enclosure, then drops off to the bottom tray and is discharged out via the liquid discharge port.
While the solid matters are retained inside the basket and fully washed to complete the solid-liquid separation. After the equipment is shutdown, open the flippable cover, remove the filter bag with special lifting appliances, transfer it to the unloading area for discharging.
After that, install the basket lip and filter bag back, lock the basket lip, close the flippable cover and lock it, and at this time, the next circulation can be started.
Scope of Application
This product can be used for the solid-liquid separation of suspensions containing solid particles, as well as for the solid-liquid separation of fibrous materials, such as gypsum, copper sulfate, potassium chloride, borax, dyes, pesticides, salt, monosodium glutamate, food additives, starch, sugar, chemical seasoners, antibiotics, vitamins, copper, zinc, aluminum and other minerals, metal refining, sludge treatment, and sewage treatment has been widely applied in the pharmaceutical, chemical, food, environmental protection, energy and other industries.
Product Features
- Inverter start-up, smooth starting, adjustable relative centrifugal force.
- Discharge cake by lifting out filter cloth is highly efficient with low labour intensity; No damage to the particles; Wide range of applications.
- Well-designed structure and polished surface leaves no residual heel. With big hinged cover, it is easy to clean the gap between the case and the basket.
- Overall welding structure between the base and the case ensures high carrying strength.
- Platform base design lowers the center of gravity and requires minimum installation space. The platform base can be used for operation platform.
- Liquid-damping vibration isolators, simplify the routine maintenance.

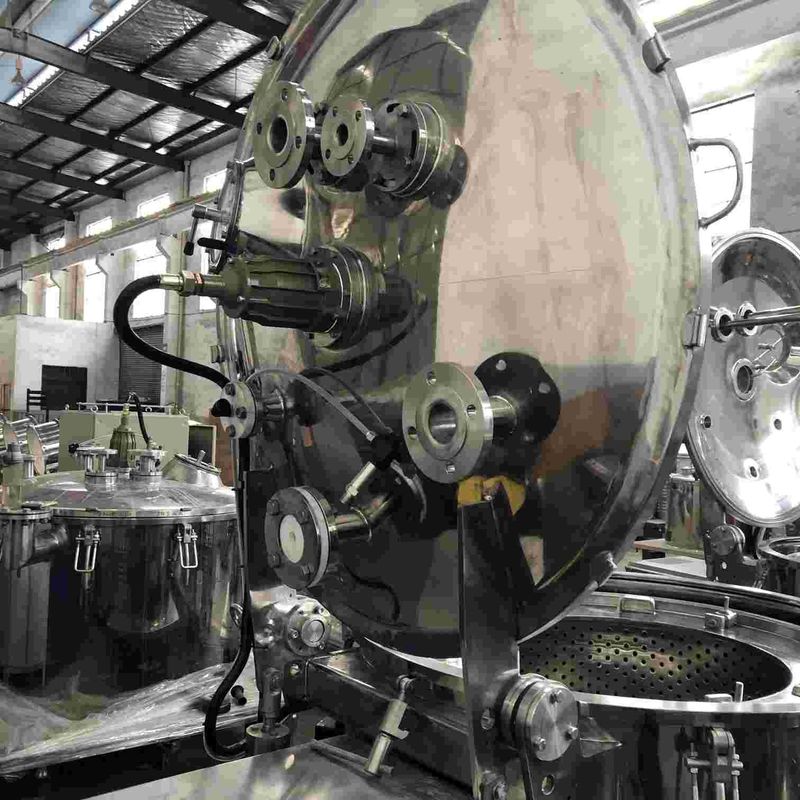

- Big hinged cover, feed pipe, wash pipe, observation glass and light.
- Automatic CIP system cleans the internal surface of the case, the basket and liquid slot to meet the clean requirement in accordance with GMP standards.
- Tightness structure with silicone rubber or fluoroelastomers seals. Nitrogen protection system(optional)is for anti-explosion applied to poisonous, flammable and explosive environment.
- Equipped with hydraulic suspension arms with external fully-stainless steel surface (optional), which is easy for discharging and complies with the sanitation requirements.
