Industrial Sedimentation 910L Basket Centrifuge Machine For Vitamins Separation
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 01418P10003R2M |
| Model Number: | PSD1800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 65 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Centrifugal Type: | Basket Centrifuge |
|---|---|---|---|
| Basket Volume(L): | 910 | Max. Capacity(kg): | 1100 |
| MOC: | Stainless Steel | Dimension(mm): | 3300*2500*2150 |
| Operate: | Manual Batch Operating | Effective Basket Height(mm): | 750 |
| High Light: | basket centrifuge machine Vitamins Separation,910L industrial centrifuge machine,910L basket centrifuge machine |
||
Product Description

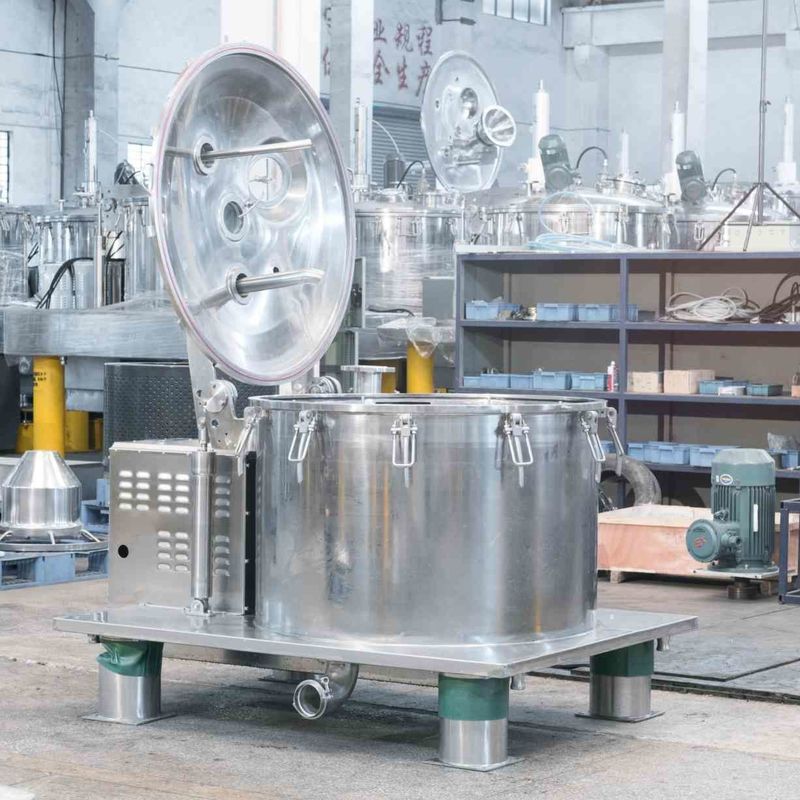

PSD Small Bag-Lifting Batch Type Industrial Sedimentation Basket Centrifuge Machines For Vitamins Separation
Product Overview
Aided mechanical discharge is adopted for the PSD centrifuge. Combining high efficiency of the automatic peeler centrifuge and wide application scope of the top discharge centrifuge, this product is advanced in structural design, small in floor covering area, low in failure rate and high in cost performance.
Technical Parameters
| Items | Models |
| PSD1800 | |
| Basket Diameter(mm) | 1800 |
| Effective Basket Height(mm) | 750 |
| Basket Volume(L) | 910 |
| Max. Capacity(kg) | 1100 |
| Max. Speed(r/min) | 780 |
| Max. Separation Factor | 612 |
| Motor Power(kw) | 37 |
| Dimension(mm) | 3300*2500*2150 |
| Weight(kg) | 10000 |
Working Principle
Once the materials to be separated enter the fast-spinning basket, it will be filtrated by the filter liner under the centrifugal force. The liquid flows out through the liquid outlet, but solids deposit on the internal wall of the basket. Once the solid cake reaches the rate capacity, feeding stops. Wash the solids cake, and then drain out the washing water. Finally stop the machine. Use the lifting tool or crane to lift out the filter cloth with solid cake, and move to the discharging place. Open the filter cloth and discharge the solid cake. Put the filter cloth back to the centrifuge and move to next batch.
Scope of Application
Apply to separating material with granulate particle shape, but also fibers, like plasters, bluestone, potassium chloride, borax, dyestuffs, pesticides, salts, gourmet powders, foodstuff additives, chemical flavors, antibiotics, vitamins, the metals like copper, zinc and aluminum, metal products, sludge, etc.
Product Features
1,Inverter start-up, smooth starting, adjustable relative centrifugal force.
2,Discharge cake by lifting out filter cloth is highly efficient with low labour intensity; No damage to the particles; Wide range of applications.
3,Well-designed structure and polished surface leaves no residual heel. With big hinged cover, it is easy to clean the gap between the case and the basket.
4,Overall welding structure between the base and the case ensures high carrying strength.
5,Platform base design lowers the center of gravity and requires minimum installation space. The platform base can be used for operation platform.
6,Liquid-damping vibration isolators, simplify the routine maintenance.
7,Big hinged cover, feed pipe, wash pipe, observation glass and light.
8,Automatic CIP system cleans the internal surface of the case, the basket and liquid slot to meet the clean requirement in accordance with GMP standards.
9,Tightness structure with silicone rubber or fluoroelastomers seals. Nitrogen protection system(optional)is for anti-explosion applied to poisonous, flammable and explosive environment.
10,Equipped with hydraulic suspension arms with external fully-stainless steel surface (optional), which is easy for discharging and complies with the sanitation requirements.
