ISO Small Vertical Pharmaceutical Centrifugal Machines Manual Basket
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 |
| Model Number: | PBZ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD4000/set |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 50 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Basket Diameter(mm): | 300 | Basket Volume(L): | 5 |
|---|---|---|---|
| Discharge: | Bag Top Discharge | Machine Control: | PLC Control |
| MOC: | Stainless Steel | Certificate: | ISO9001 |
| Operate: | Manual Batch Operating | Rotating Speed Control: | Frequency Converter |
| High Light: | ISO pharmaceutical centrifuge machine,ISO pharma centrifuge machine,Vertical pharmaceutical centrifuge machine |
||
Product Description

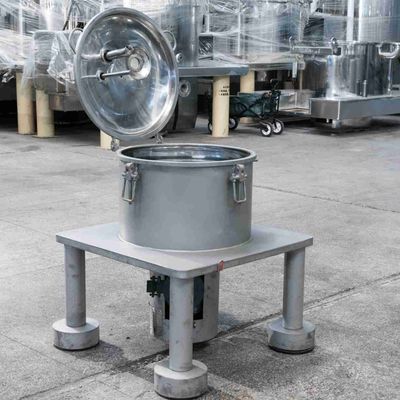

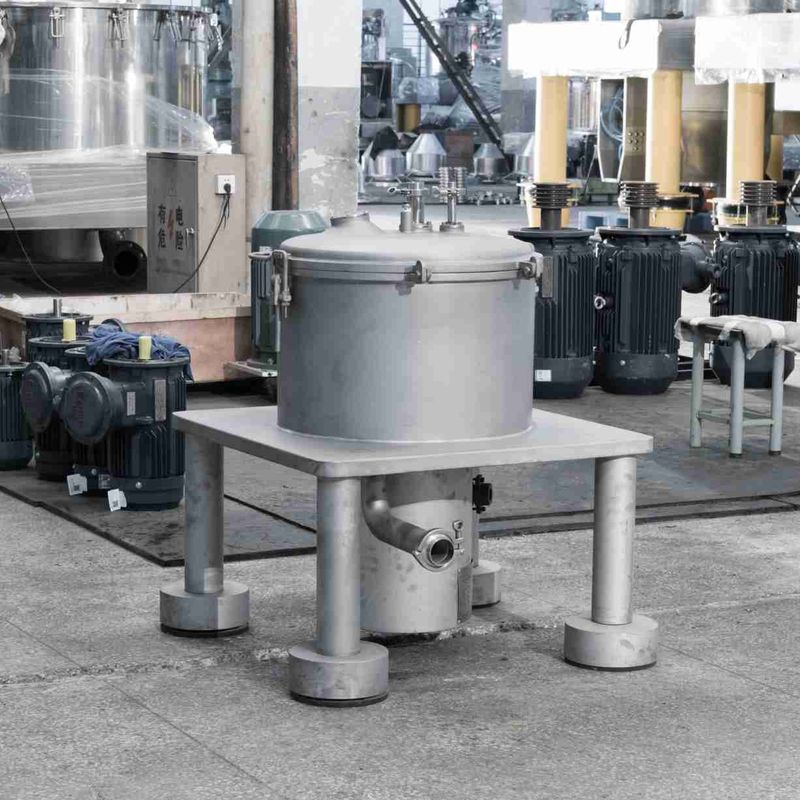

PBZ Type Small Vertical Engineers Service Machinery Overseas Manual Basket Pharmaceutical Centrifugal Machines
The PBZ series are enclosed manual top discharge and filtration centrifuges designed in line with the GMP standards and environmental protection requirements, which can be used for separating a wide range of materials. This product is highly applicable to the separation of various suspensions and fibrous materials with high temperature, strong viscosity and small particle sizes (minimum size of 1μm). Characterized by high separation factor, simple structure and high performance, the PBZ300 and 450 products are commonly selected as testing machines by various research institutions.
Main Features
- Well-designed structure and polished surface leaves no residual heel. With big hinged cover, it is easy to clean the gap between the case and the basket.
- Platform base design lowers the center of gravity and requires minimum installation space. The platform base can be used for operation platform.
- Big hinged cover, feeding pipe, washing pipe, observation glass and light.
- Automatic CIP system cleans the internal surface of the case, the basket and liquid slot to meet the clean
- requirement in accordance with GMP standards
.
Technical Parameters
| Items | Models |
| PBZ300 | |
| Basket Diameter(mm) | 300 |
| Basket Volume(L) | 5 |
| Max. Capacity(kg) | 7.5 |
| Max. Speed(r/min) | 2825 |
| Max. Separation Factor | 1340 |
| Motor Power(kw) | 1.1 |
| Dimension(mm) | 605*605*830 |
| Weight(kg) | 200 |
SERVICE WARRANTY
Equipment layout and Installation guide - providing centrifuge and system layout guided, installation and operation guide, in order to meet safety, use and maintenance requirement.
Debugging – During commissioning, providing site guidance of the service engineers and determining the corresponding operation parameters, to meet the separation requirements.
Process optimization - optimizing separation engineering parameters and procedure in the process of debugging, to improve separation efficiency and yield and output and to reduce energy consumption.
Software upgrading - For our sold centrifuges, we can make individual program improvement and provide program upgrading on the request of customers during their subsequent operation.
Operation and maintenance training - Providing detailed centrifuge debugging and use guide, making safety, operation and maintenance training for operation and maintenance personnel during installation and debugging; also, customers can send relevant personnel to Huada for short-term training.
Repair - Providing door-to-door on-site repair and return to factory for repair.
Safety confirmation - During the term of the service life of the centrifuge, providing centrifuge safety testing and validation in the annual overhaul.
We just obtain the data and information connected with the separation process within the scope of your permit, and we ensure your data safety.
