Suspension Processing 20L Top Discharge Centrifuge Manual Anti Corrosion
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 |
| Model Number: | PBZ450 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 50 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Basket Diameter(mm): | 450 | Centrifugal Type: | Basket Centrifuge |
|---|---|---|---|
| Discharge: | Bag Top Discharge | Machine Control: | PLC Control |
| Basket Volume(L): | 20 | Operate: | Manual Batch Operating |
| Rotating Speed Control: | Frequency Converter | Online Washing System: | Optional |
| High Light: | 20L Top Discharge Centrifuge,20L chemical centrifuge machine,Top Discharge Centrifuge Anti Corrosion |
||
Product Description

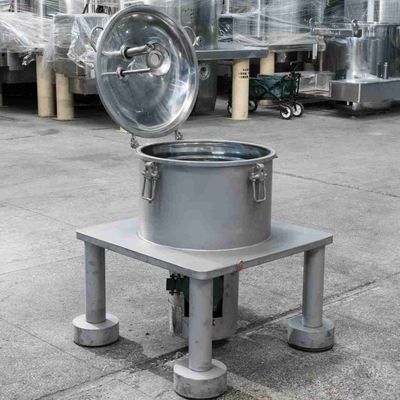

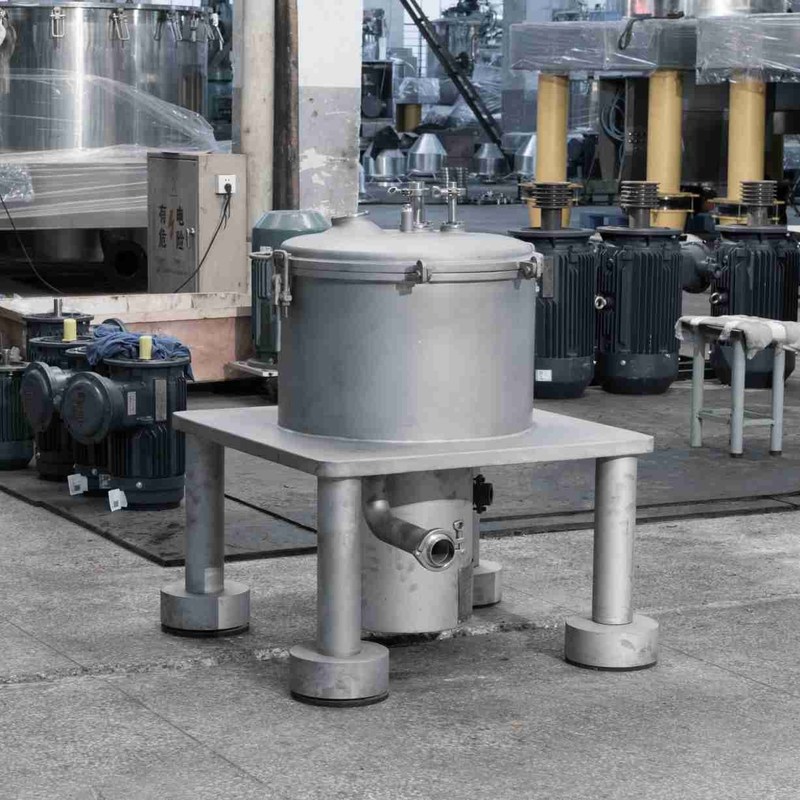

PBZ Small 1 Year Warranty Vertical New Chemical Suspension Processing Manual Anti-Corrosion Centrifuge
The PBZ series are enclosed manual top discharge and filtration centrifuges designed in line with the GMP standards and environmental protection requirements, which can be used for separating a wide range of materials. This product is highly applicable to the separation of various suspensions and fibrous materials with high temperature, strong viscosity and small particle sizes (minimum size of 1μm). Characterized by high separation factor, simple structure and high performance, the PBZ300 and 450 products are commonly selected as testing machines by various research institutions.
Main Features
- In compliance with the GMP standards: enclosed structure designed to effectively avoid contamination of materials. Configured with CIP online cleaning system to realize all-around cleaning.
- Wide opening structure designed for easier discharging and replacement of the filter bag.
- Small floor covering area, easy maintenance, low failure rate and long service life.
- Model PBZ centrifuge has applied direct shaft connected motor, which eliminates frictional dust from belt drive. In the meantime, the motor is installed at the bottom of the machine, which requires minimum installation space.
Technical Parameters
| Items | Models |
| PSB450 | |
| Basket Diameter(mm) | 450 |
| Basket Volume(L) | 20 |
| Max. Capacity(kg) | 30 |
| Max. Speed(r/min) | 1900 |
| Max. Separation Factor | 910 |
| Motor Power(kw) | 1.5 |
| Dimension(mm) | 800*800*1000 |
| Weight(kg) | 300 |
Anti-corrosion
The materials to be separated are normally corrosive. So for safety, the parts in contact with these corrosive materials must be anti-corrosive.
Material of constructions: 304, 321, 316L, 904L, TA, 2205, 2507etc.
When there is determined application experience or corrosion data, carry out coupon test and laboratory verification to ensure selected material meet anti-corrosion requirements.
Surface anti-corrosion treatment: PE lined, rubber lined and halar lined and F40, F46, PFA etc.
Anti-corrosion requirements of sealing elements can not be neglected; material of sealing elements shall ensure prevention against corrosion from acids, alkali and solvents.
The customer shall forward the physical and chemical properties of the material and washing liquid (chemical properties and separation temperature etc.) to the manufacturer so that it can make recommendations for centrifuge materials based on characteristics of the separation medium, and that the suitable seal ring, seal washer and filter cloth can be provided, thus ensuring anti-corrosion requirements on the centrifuge.
PROCEDURE CONTROL
Huada has a professional quality management team, which implements each link related to users and products from contract review, technical design, material procurement, manufacturing process to after-sales service according to standard operating procedure, to effectively control the full process from design, purchasing, manufacturing to service.
Quality certification and mechanical safety certification
We established quality management system; in 1996, our products passed ISO quality management system certification and from 1998 our products passed mechanical safety certification and reexamination is made each year. Effective quality management system can ensure the product quality,
Contract review
For individual requirements of customers, we make security risk evaluation specific to contract and technical agreement, to ensure that safety requirements. We confirm individual configuration and changes and propose quality plan and opinions.
Process control
Quality plan: For each order, at the time of design output, we put forward the quality plan of the production batch according to the customers’ individual requirements and internal quality control requirements and make clear information like material, configuration, individual changes, inspection requirements and special agreement. The quality plan is the internal control document for purchase, manufacture, inspection and confirmation for this batch.
ERP process: Through process and permissions settings, we standardize the product realization process including design output, change, procurement, materials distribution, machining process, inspection and records, warehouse-in and warehouse-out.
