Vertical Manual 120L Basket Centrifuge 450mm With Halar Lining
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 |
| Model Number: | PSB800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 60 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Centrifugal Type: | Basket Centrifuge |
|---|---|---|---|
| Discharge: | Bag Top Discharge | Effective Basket Height(mm): | 450 |
| MOC: | Stainless Steel | Basket Volume(L): | 120 |
| Operate: | Manual Batch Operating | Online Washing System: | Optional |
| High Light: | 120L Basket Centrifuge,120L vertical centrifuge machine,Vertical Basket Centrifuge 450mm |
||
Product Description

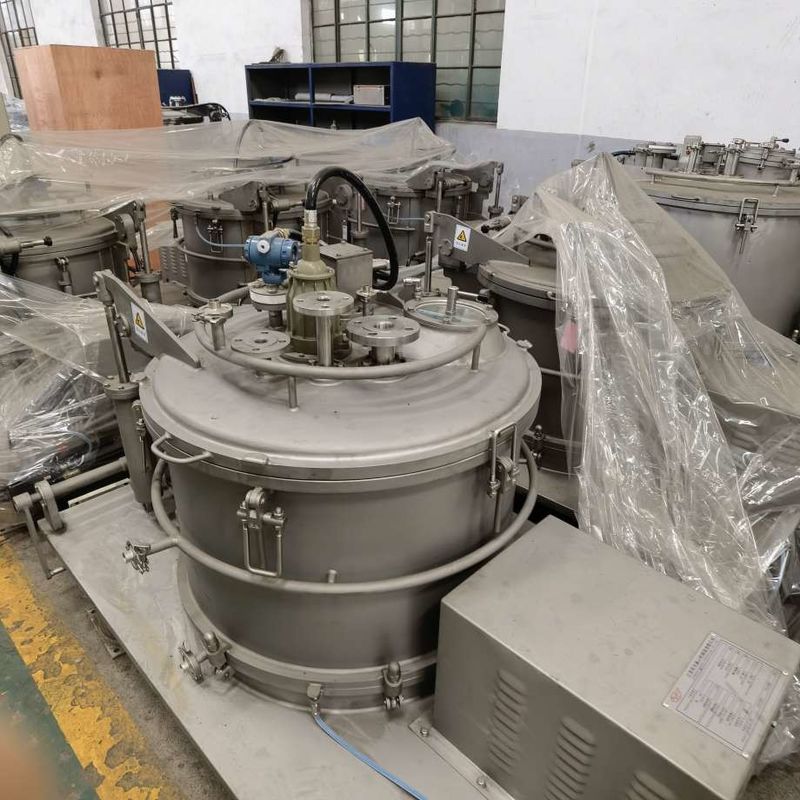

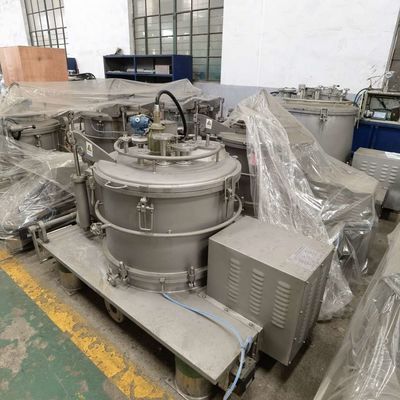

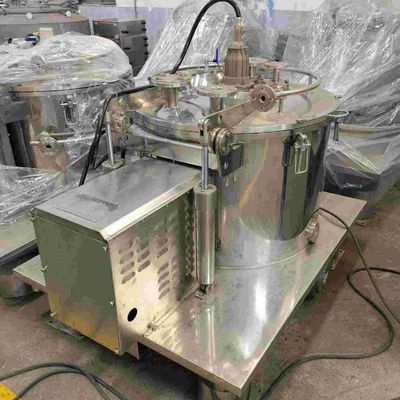

PSB Vertical Manual Top Discharge Sedimentation Basket Centrifuge With Halar Lining Engineers service machinery overseas
The PSB/PBZ series are enclosed manual top discharge and filtration centrifuges designed in line with the GMP standards and environmental protection requirements, which can be used for separating a wide range of materials. This product is highly applicable to the separation of various suspensions and fibrous materials with high temperature, strong viscosity and small particle sizes (minimum size of 1μm). Characterized by high separation factor, simple structure and high performance, the PBZ300 and 450 products are commonly selected as testing machines by various research institutions.
Main Features
- Well-designed structure and polished surface leaves no residual heel. With big hinged cover, it is easy to clean the gap between the case and the basket.
- Platform base design lowers the center of gravity and requires minimum installation space. The platform base can be used for operation platform.
- Big hinged cover, feeding pipe, washing pipe, observation glass and light.
- Automatic CIP system cleans the internal surface of the case, the basket and liquid slot to meet the clean requirement in accordance with GMP standards.
- Wide range of applications. No damage to the particle shape.
PSB lined with PE PSB lined with HL
PSB
Technical Parameters
| Items | Models |
| PSB800 | |
| Basket Diameter(mm) | 800 |
| Effective Basket Height(mm) | 450 |
| Basket Volume(L) | 120 |
| Max. Capacity(kg) | 150 |
| Max. Speed(r/min) | 1500 |
| Max. Separation Factor | 1007 |
| Motor Power(kw) | 7.5 |
| Dimension(mm) | 1730*1200*1320 |
| Weight(kg) | 1500 |
