1200rpm 200L Top Discharge Centrifuge Metal Products Separation
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 |
| Model Number: | PSB/PBZ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD4000-20000/set |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 60 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Type: | Centrifugal Machines | Centrifugal Type: | Basket Centrifuge |
|---|---|---|---|
| Discharge: | Bag Top Discharge | Machine Control: | PLC Control |
| Effective Basket Height(mm): | 325-680 | Basket Volume(L): | 47-555 |
| Operate: | Manual Batch Operating | Rotating Speed Control: | Frequency Converter |
| Online Washing System: | Optional | ||
| High Light: | 1200rpm Top Discharge Centrifuge,200L solid liquid centrifugal separator,11kw Top Discharge Centrifuge |
||
Product Description

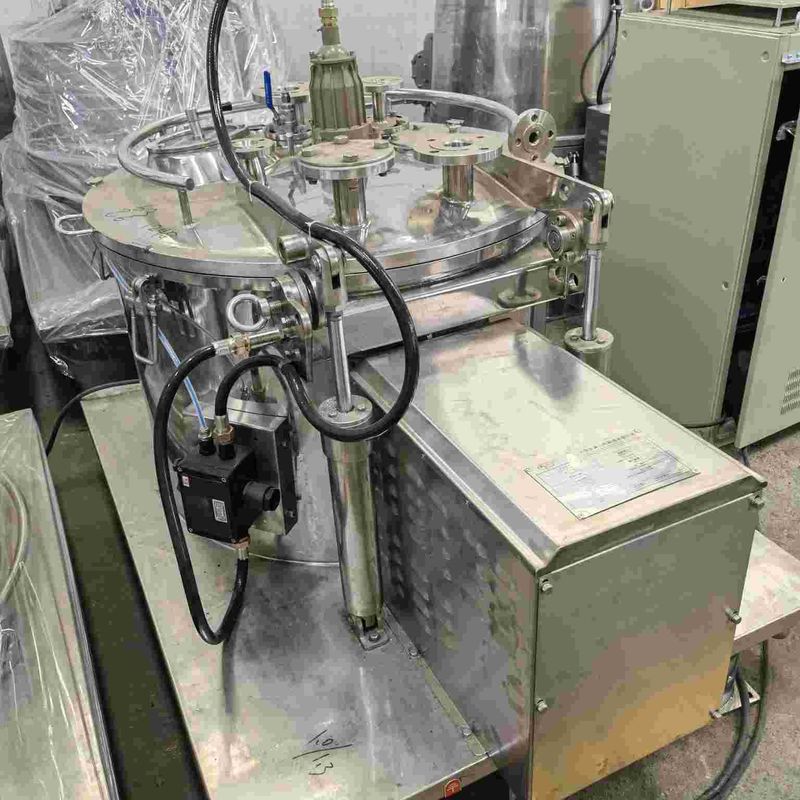

PSB 200L Top Discharge Manual Metal Products Separation Sedimentation Basket Centrifugal Plants
It is suitable for the suspension of high temperature, high viscosity, small particle size, all kinds of difficult to separate, fibrous materials, etc., with the minimum particle size of separation up to 1 micron.
Features of Top Discharge Centrifuge Machine:
1, Tightness structure with silicone rubber or fluoroelastomers seals.
Nitrogen protection system (optional) is for anti-explosion applied to poisonous, flammable and
explosive environment.
2, Well-designed structure leaves no place depositing dusts and makes the machine clean easily
The modules are designed smoothly and polished on the surface The case, fixing parts and drums are made of stainless steel with hinged enclosure cover, it is easy to clean the gap between the ease and the drum.
3, Frequency converter startup, smooth starting, adjustable separation factor.
4, Wide range of applications. No damage to the particle shape.

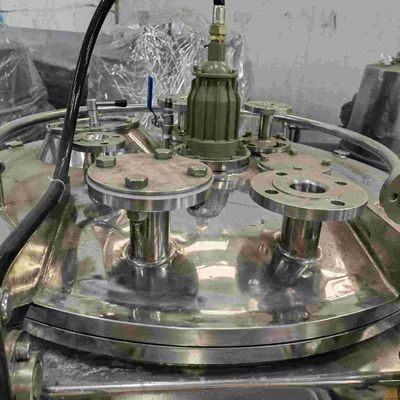

5, Equipped with feeding pipe, washing pipe and viewing mirror hole, the structure design is reasonable.
6, Simple structure, easy operation and maintenance.
Technical Parameters
| Items | Models | |||||
| PSB600 | PSB800 | PSB1000 | PSB1200 | PSB1250 | PSB1500 | |
| Basket Diameter(mm) | 600 | 800 | 1000 | 1200 | 1250 | 1500 |
| Effective Basket Height(mm) | 325 | 450 | 520 | 550 | 630 | 680 |
| Basket Volume(L) | 47 | 120 | 200 | 270 | 400 | 555 |
| Max. Capacity(kg) | 70 | 150 | 250 | 340 | 500 | 700 |
| Max. Speed(r/min) | 1600/1800 | 1500 | 1200/1400 | 1100 | 1000/1200 | 850 |
| Max. Separation Factor | 860/1087 | 1007 | 805/1096 | 812 | 700/1007 | 606 |
| Motor Power(kw) | 3/4 | 7.5 | 11/15 | 15 | 18.5/22 | 30 |
| Dimension(mm) | 1470*990*1150 | 1730*1200*1320 | 1970*1400*1500 | 2300*1550*1500 | 2550*1800*1780 | 2750*2200*1750 |
| Weight(kg) | 1000/1200 | 1500 | 2400/2600 | 3000 | 3800/4800 | 6200 |
| Items | Models | |
| PBZ300 | PSB450 | |
| Basket Diameter(mm) | 300 | 450 |
| Basket Volume(L) | 5 | 20 |
| Max. Capacity(kg) | 7.5 | 30 |
| Max. Speed(r/min) | 2825 | 1900 |
| Max. Separation Factor | 1340 | 910 |
| Motor Power(kw) | 1.1 | 1.5 |
| Dimension(mm) | 605*605*830 | 800*800*1000 |
| Weight(kg) | 200 | 300 |
Collocation:
- Ex-proof motor
- Touch screen with PLC system
- On spot ex-button

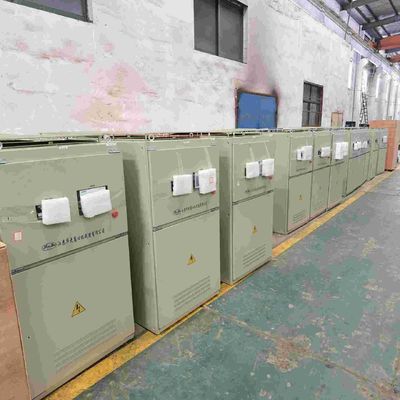

- Frequency conversion control box
- PTFE Seals
- Filter bags
- Clamp joint for feed and drain por
- Sight hole with stalinite.
- Power assisting device for opening/closing the lid
- Valve for cooling circulating liquid and discharging soaking liquid.
- Free spare parts
Notice for Order
1.The technical patameters provided in the instructions of products are preferable.
2. The customer who asks about products pleaseinform us of the characteristic paracteristic parameter of material and operate condition.
3. The design and manufacturing of individuation are available. Material common such as SUS304, 316, 316L, 321, special stainless steel, lining plastic, titanium alloy or Halay.The model to open the closed cover eith hydraulic cylinder, pneumatic cyliner,electromotion cylincer or mechanical balancer.Designs and manufacturing are supplied according to the standard of GMP.
Other technical demands could be discussed.
